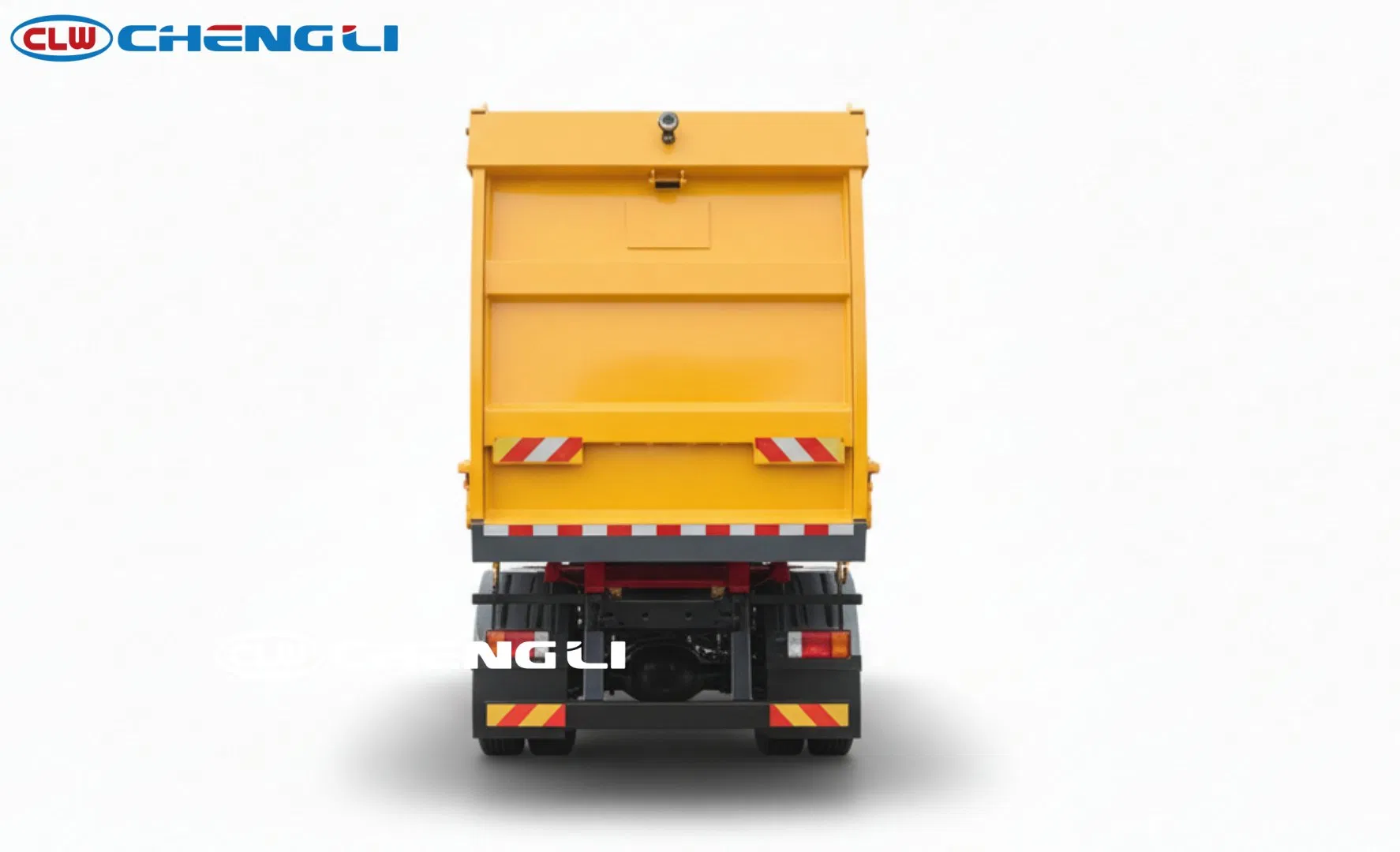

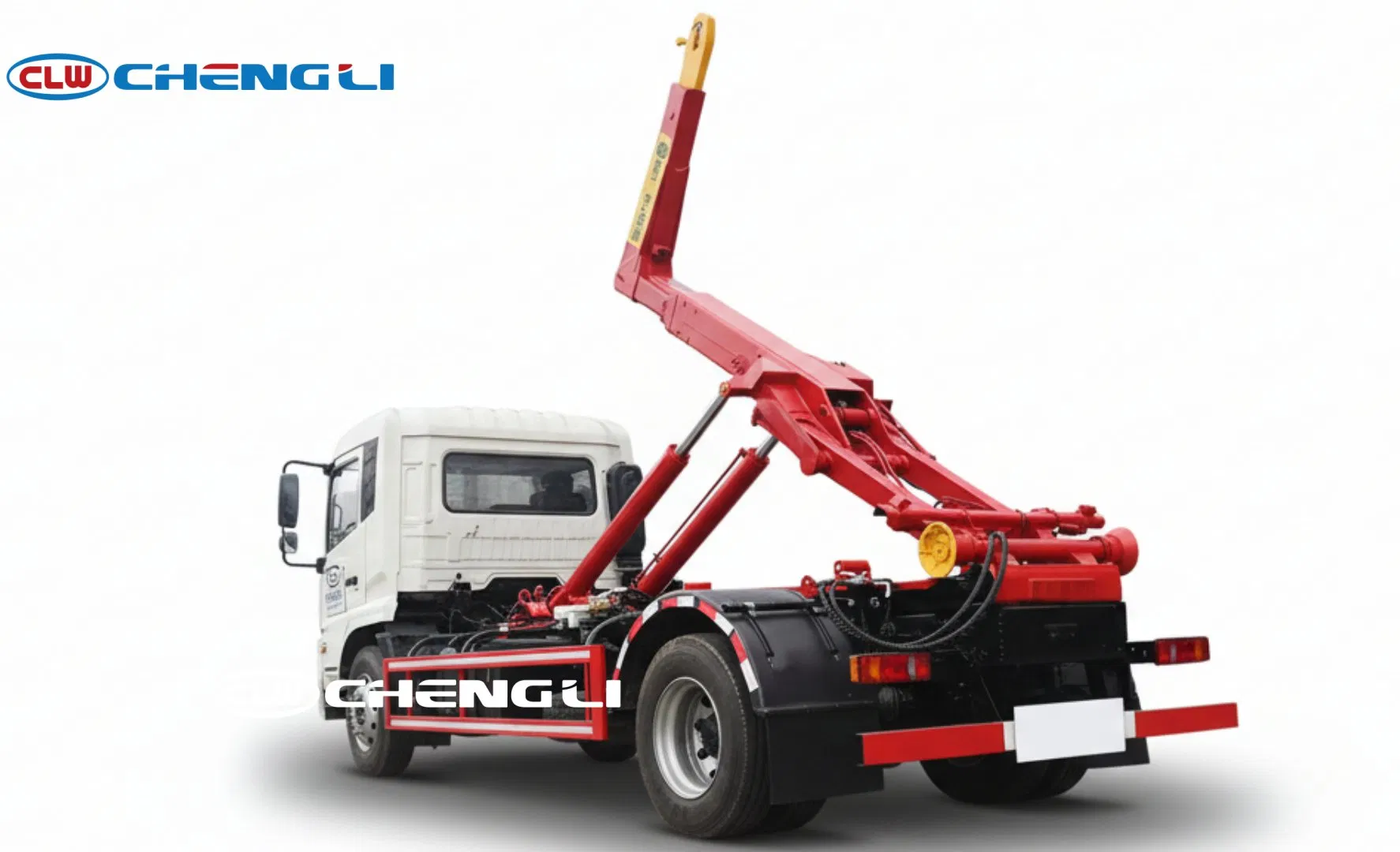

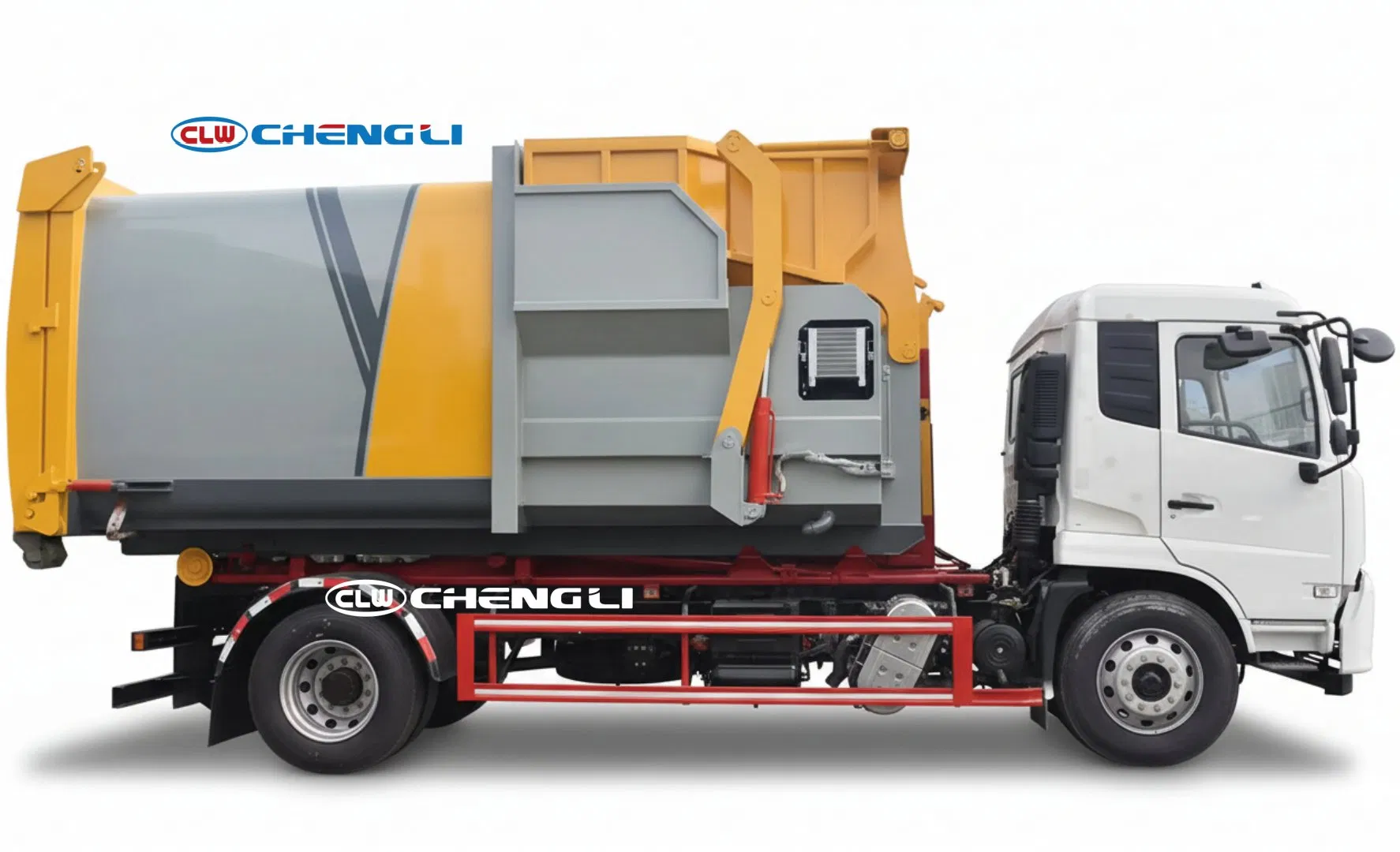

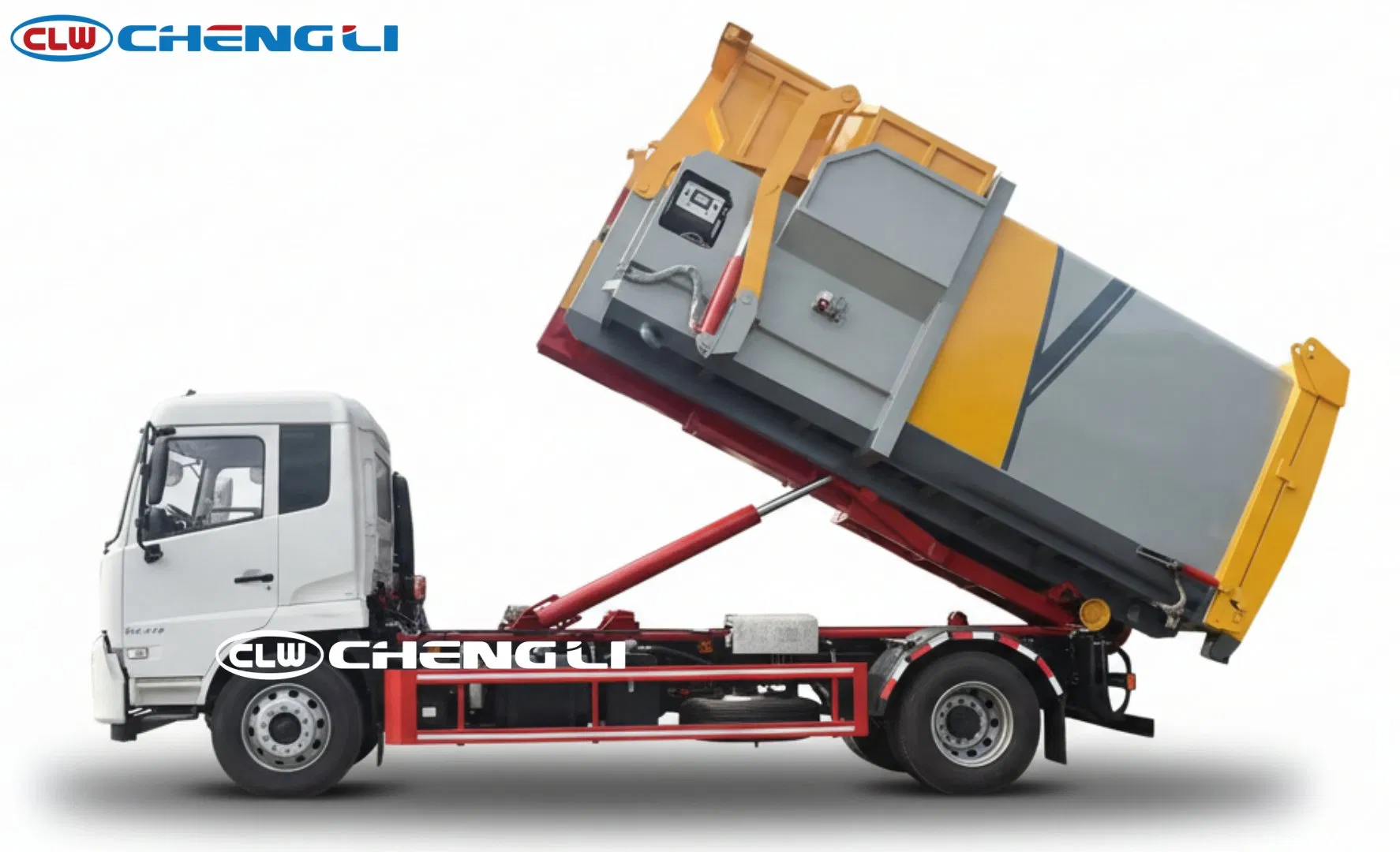

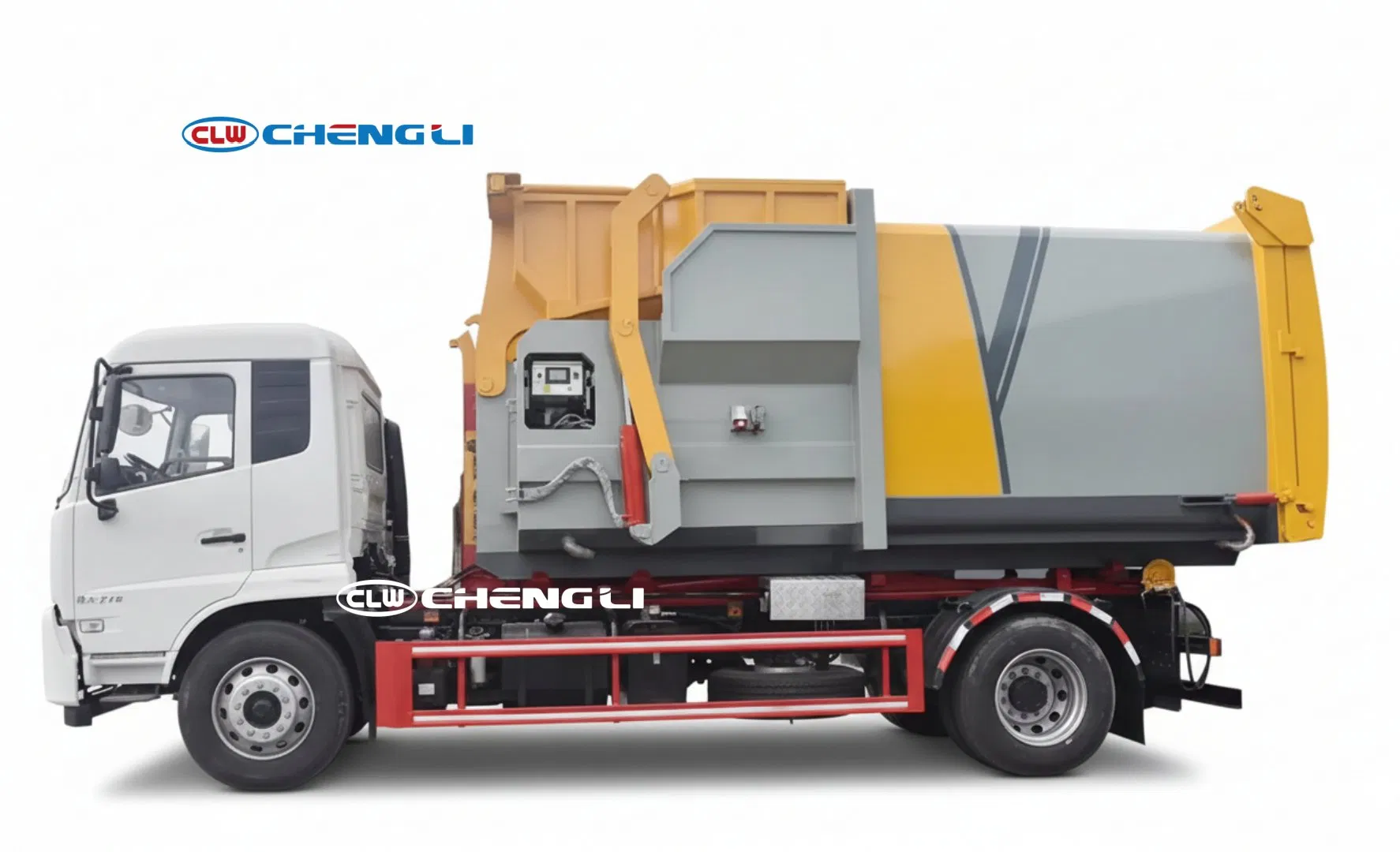

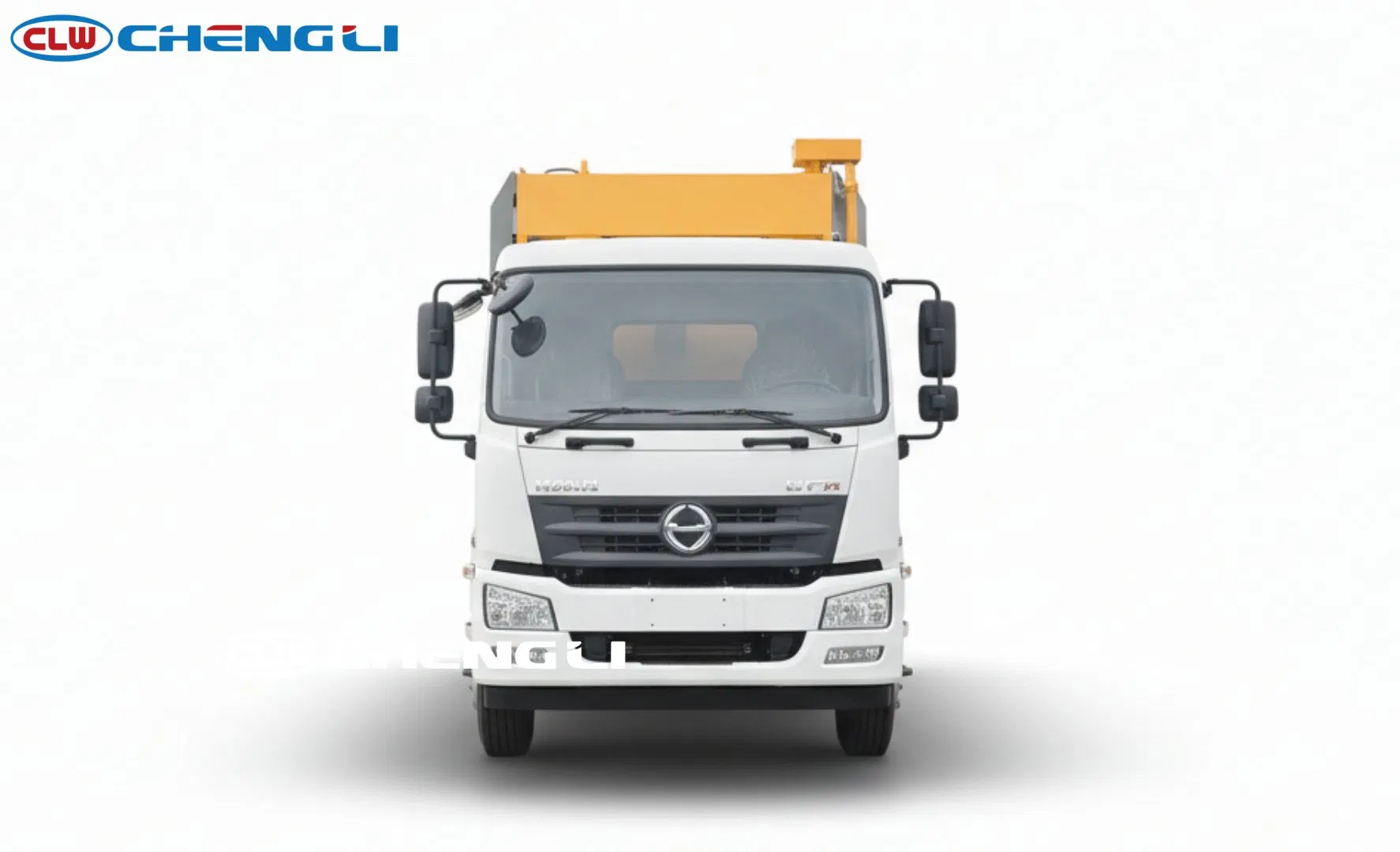

Dongfeng 190 HP Hook Lift Garbage Truck

Dongfeng 190 HP Hook Lift Garbage Truck is listed for municipal waste collection. The final tank or body capacity still needs confirmation against the chosen build. The listed working arrangement is hook-lift handling of detachable containers; final equipment and legal payload require a signed specification.

Drive
4×2
Fuel
Diesel
Transmission
Manual
Maximum speed
89 km/h

Operational planning

Core capabilities

Capacity and output to confirm

Body or container volume is not the same as legal payload or daily collection output. Actual collection depends on waste density, bin compatibility, route length, crew practice and disposal trips.

Conditions: Use the signed vehicle specification and measured site or route inputs; no coverage or output guarantee is stated.

Actual results vary with: Actual duty cycle, loading, route conditions, equipment settings and refill or disposal time.

Vehicle specifications

Manufacturer
Chengli / CLW
Vehicle model
CLW5180ZXXD6
Chassis brand
Dongfeng
Chassis model
Dongfeng DFH1180EX8
Drive layout
4×2
Fuel type
Diesel
Transmission
Manual
Wheelbase
3800,3950,4200,4500,4700,5000,5300,5800,5600,51 mm
Length
7300 mm
Width
7500 mm
Height
6570 mm
Curb weight
18000 kg
Maximum speed
89 km/h

Intended applications

municipal waste collection

Confirm the duty cycle, legal load and destination requirements against the final signed vehicle specification.

Supplier-listed configuration details

These are reference listing values, not a confirmed build or guaranteed performance. Request the signed technical schedule for the selected chassis and equipment.

Chassis and power
Chassis Model
Dongfeng DFH1180EX8
Drive Form
4×2
Emission Standard
China VI (National VI)
Engine Brand
D4.5NS6B190
Tires
10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR
Body and tank
Body Shape
Square Tank
Effective Body Volume
12000 L
Working system
Supplier Listed System
hook-lift handling of detachable containers

Suitable working conditions

  • Collection routes compatible with the final bin, lifting system and chassis
  • Waste streams covered by the signed body specification

Check before selecting

  • Hazardous waste without a purpose-built approved body
  • Loads exceeding the final legal payload or axle limits

Product details

Dongfeng 190 HP Hook Lift Garbage Truck is listed for municipal waste collection. The final tank or body capacity still needs confirmation against the chosen build. The product listing describes hook-lift handling of detachable containers. The source describes a Dongfeng reference chassis in 4×2 layout. The listed power source is diesel; final engine or battery details must be checked against the chosen chassis.

Body or container volume is not the same as legal payload or daily collection output. Actual collection depends on waste density, bin compatibility, route length, crew practice and disposal trips. This is planning guidance, not a guaranteed output figure.

Confirm the body or container, lifting interface, legal payload, waste type, route access, steering side and service requirements before quotation. Price, lead time, certification and after-sales terms must be confirmed in a current written quotation or contract.

Verification

Trust and document status

Authorization

Africa Municipal Trucks is operated by Chengli Automobile Group's own team. We work directly with Chengli's Suizhou manufacturing operations to confirm vehicle specifications, coordinate production and prepare export documents for each order.

Factory inspection

We can coordinate a visit to Chengli's Suizhou production facilities and, if requested, an independent pre-shipment inspection. The inspection scope, access and timing are agreed for the confirmed order.

Important operating note

Confirm the body or container, lifting interface, legal payload, waste type, route access, steering side and service requirements before quotation.

Custom quotation

Information needed for an accurate offer

Send the actual working conditions so the chassis, tank, pump, steering and compliance package can be checked before quotation.

Provide the destination port and final inland delivery point in Nigeria, Ghana, Kenya, Tanzania, Zambia or Zimbabwe for a project freight calculation.

  • Waste type and estimated density
  • Required body or container capacity
  • Daily collection volume and route conditions
  • Bin/container dimensions and lifting interface
  • Destination country and port
  • Emission standard and steering side
  • Quantity and required delivery date
Send RFQ details
Checks before a formal quotation
  • Confirm chassis brand and model
  • Confirm legal payload and axle loads
  • Confirm body/container compatibility
  • Confirm hydraulic cycle and safety locks
  • Confirm destination compliance documents
  • Confirm Incoterm, freight and warranty
