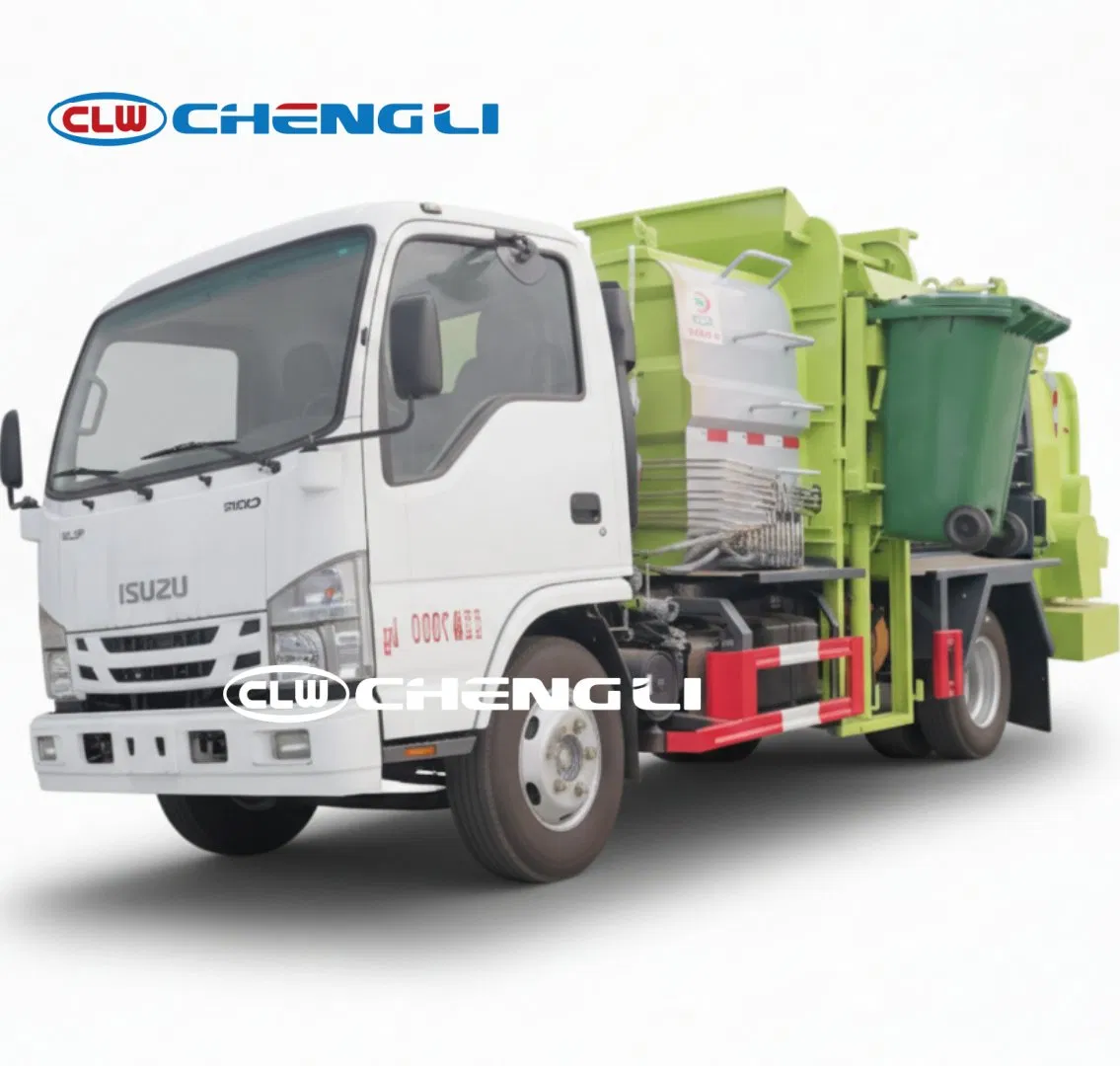

5 m³ Kitchen Waste Truck

5 m³ Kitchen Waste Truck is listed for municipal waste collection. The supplier listing describes 5 m³ tank. The listed working arrangement is enclosed food-waste collection; final equipment and legal payload require a signed specification.

Capacity
5 m³ tank (supplier listing)
Drive
4×2
Fuel
Diesel
Transmission
Manual
GVW
7,360 kg
Maximum speed
95 km/h

Operational planning

Core capabilities

5 m³ tank (supplier listing)

Body or container volume is not the same as legal payload or daily collection output. Actual collection depends on waste density, bin compatibility, route length, crew practice and disposal trips.

Conditions: Use the signed vehicle specification and measured site or route inputs; no coverage or output guarantee is stated.

Actual results vary with: Actual duty cycle, loading, route conditions, equipment settings and refill or disposal time.

Vehicle specifications

Manufacturer
Chengli / CLW
Vehicle model
CL5072TCA6CC
Chassis brand
ISUZU
Chassis model
QL1070BUHACY
Drive layout
4×2
Fuel type
Diesel
Transmission
Manual
Wheelbase
3360 mm
Length
5950 mm
Width
2160 mm
Height
2800 mm
Gross vehicle weight
7360 kg
Curb weight
4600 kg
Rated payload
2570 kg
Primary capacity
5 m³ tank (supplier listing)
Maximum speed
95 km/h

Intended applications

municipal waste collection

Confirm the duty cycle, legal load and destination requirements against the final signed vehicle specification.

Supplier-listed configuration details

These are reference listing values, not a confirmed build or guaranteed performance. Request the signed technical schedule for the selected chassis and equipment.

Chassis and power
Chassis Model
QL1070BUHACY
Drive Form
4×2
Emission Standard
China VI (National VI)
Engine Brand
Quanchai Q23-95E60
Tires
7.00R16
Body and tank
Body Material
Side 3mm/Bottom 4mm Manganese Steel / Optional Stainless Steel
Body Shape
Square Tank
Discharging Method
Push-out Discharge (Non-tipping)
Effective Body Volume
5000 L
Lifting Mechanism
For 240L Standard Waste Bins
Working system
Control Mode
Manual Control / Electric Control (Optional)
Max Hydraulic System Pressure
16 MPa
Supplier Listed System
enclosed food-waste collection
Operating performance
Bin Lift Tip Cycle Time
≤ 25 s
Bin Lowering Time
≤ 20 s
Cleaning Wat 6Aaf394Dd8
9.5 L/min
Cleaning Wat Af55685481
DP-35
Rear Cover H Bcdad05D02
≤ 20 s
Rear Cover L 17094B55A7
Mechanical Lock / Optional Hydraulic Lock
Rear Cover O D0De39Ae6D
70 °
Rear Cover Opening Time
≤20 s

Suitable working conditions

  • Collection routes compatible with the final bin, lifting system and chassis
  • Waste streams covered by the signed body specification

Check before selecting

  • Hazardous waste without a purpose-built approved body
  • Loads exceeding the final legal payload or axle limits

Product details

5 m³ Kitchen Waste Truck is listed for municipal waste collection. The supplier listing describes 5 m³ tank. The product listing describes enclosed food-waste collection. The source describes a ISUZU reference chassis in 4×2 layout. The listed power source is diesel; final engine or battery details must be checked against the chosen chassis.

Body or container volume is not the same as legal payload or daily collection output. Actual collection depends on waste density, bin compatibility, route length, crew practice and disposal trips. This is planning guidance, not a guaranteed output figure.

Confirm the body or container, lifting interface, legal payload, waste type, route access, steering side and service requirements before quotation. Price, lead time, certification and after-sales terms must be confirmed in a current written quotation or contract.

Verification

Trust and document status

Authorization

Africa Municipal Trucks is operated by Chengli Automobile Group's own team. We work directly with Chengli's Suizhou manufacturing operations to confirm vehicle specifications, coordinate production and prepare export documents for each order.

Factory inspection

We can coordinate a visit to Chengli's Suizhou production facilities and, if requested, an independent pre-shipment inspection. The inspection scope, access and timing are agreed for the confirmed order.

Important operating note

Confirm the body or container, lifting interface, legal payload, waste type, route access, steering side and service requirements before quotation.

Custom quotation

Information needed for an accurate offer

Send the actual working conditions so the chassis, tank, pump, steering and compliance package can be checked before quotation.

Provide the destination port and final inland delivery point in Nigeria, Ghana, Kenya, Tanzania, Zambia or Zimbabwe for a project freight calculation.

  • Waste type and estimated density
  • Required body or container capacity
  • Daily collection volume and route conditions
  • Bin/container dimensions and lifting interface
  • Destination country and port
  • Emission standard and steering side
  • Quantity and required delivery date
Send RFQ details
Checks before a formal quotation
  • Confirm chassis brand and model
  • Confirm legal payload and axle loads
  • Confirm body/container compatibility
  • Confirm hydraulic cycle and safety locks
  • Confirm destination compliance documents
  • Confirm Incoterm, freight and warranty
