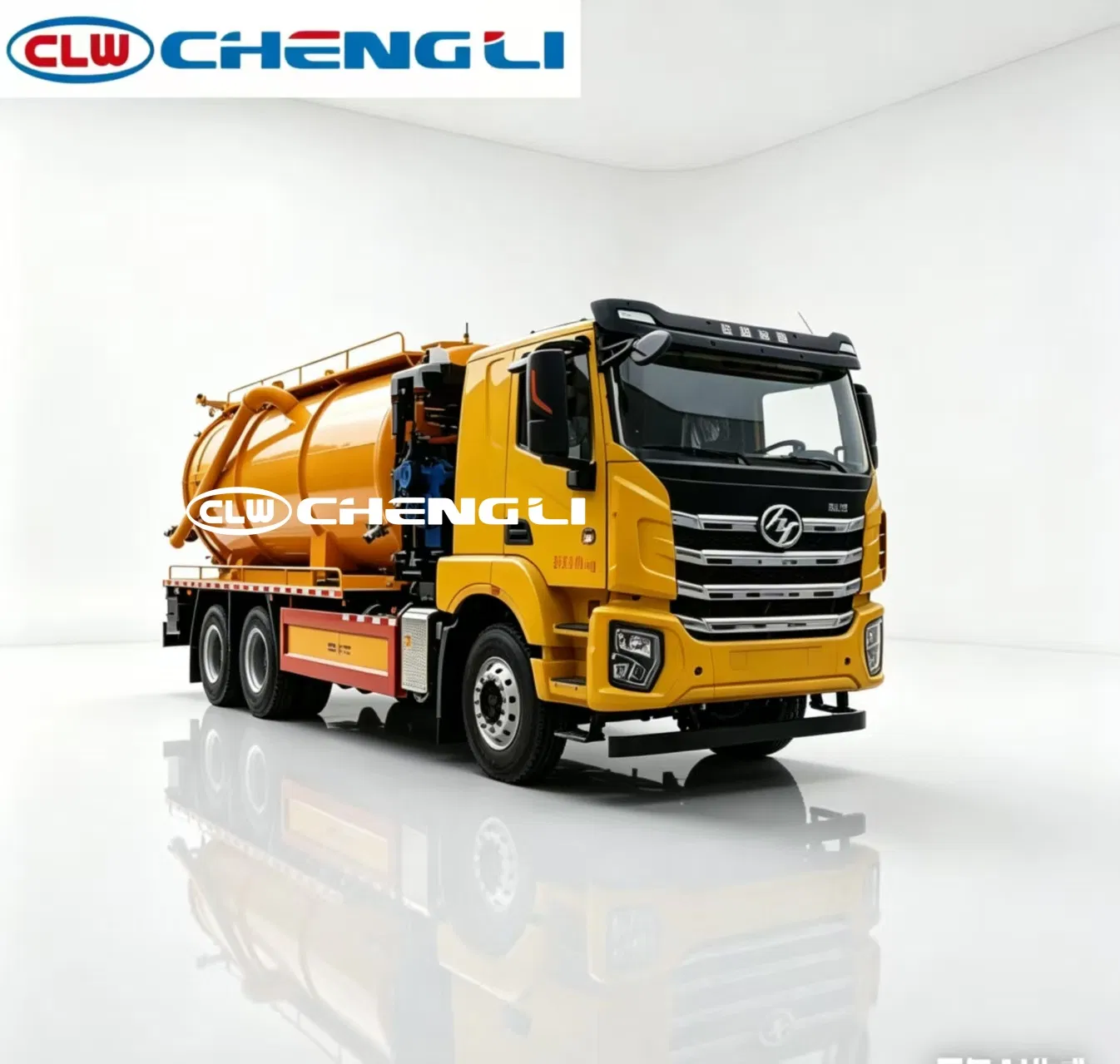

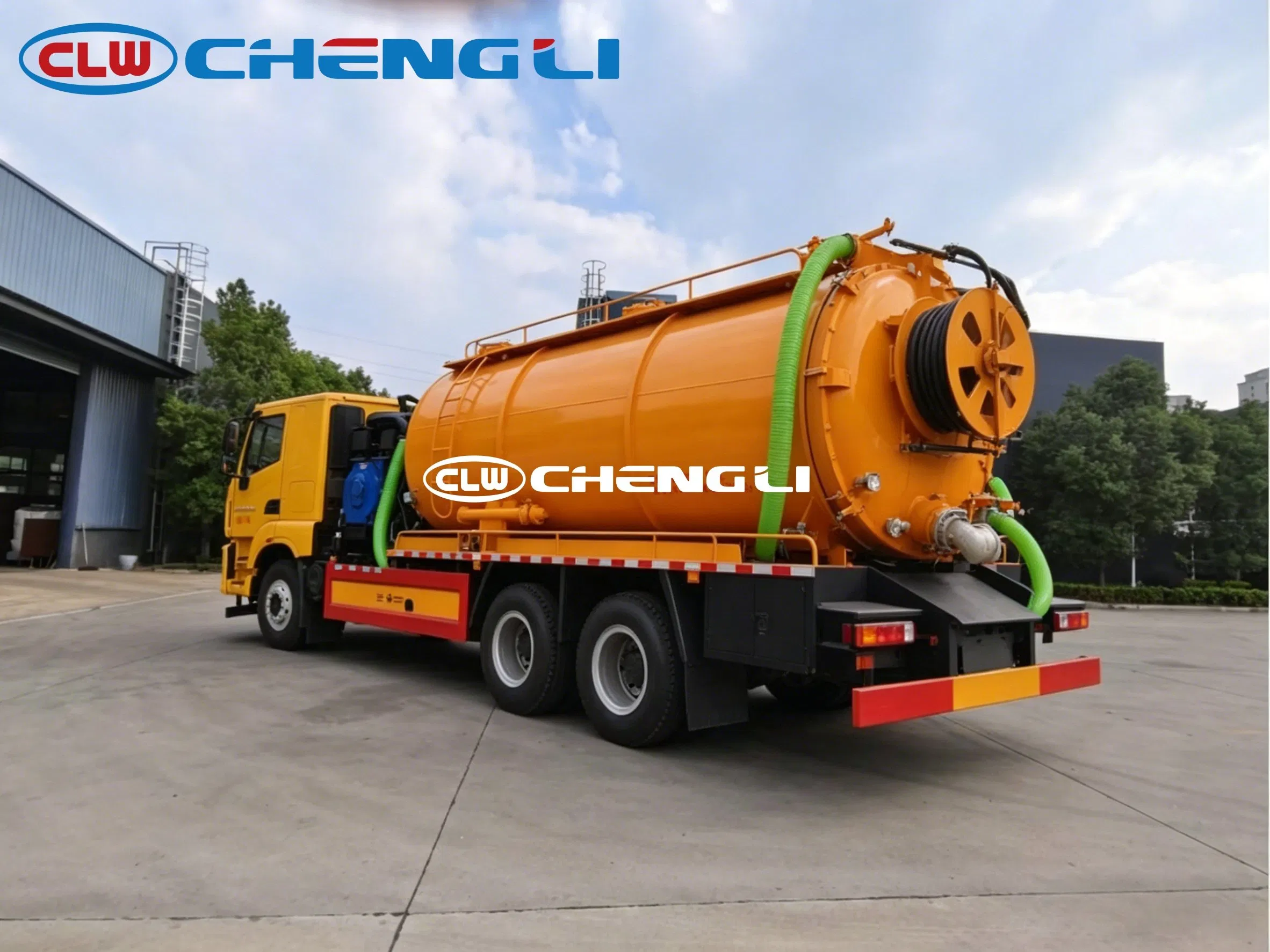

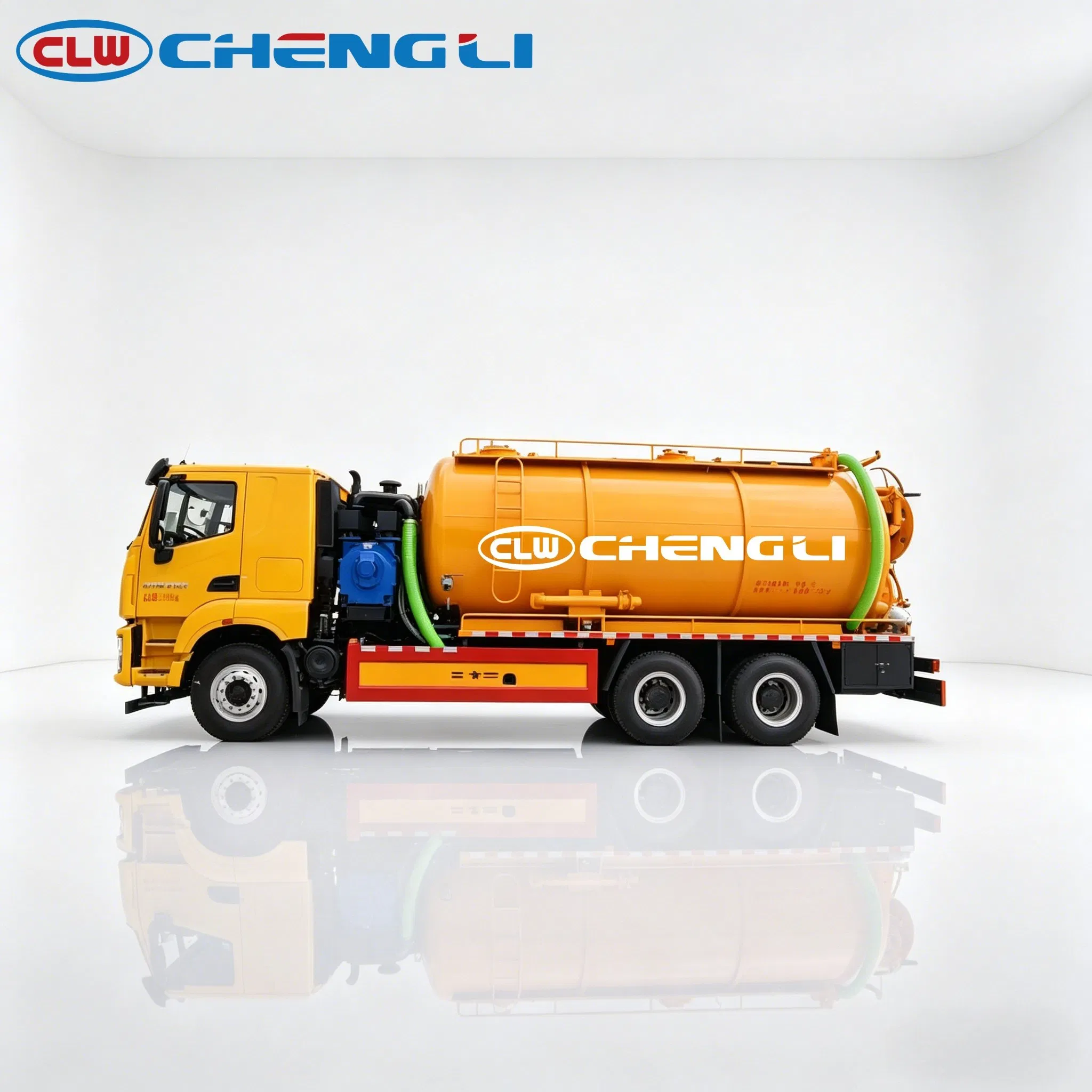

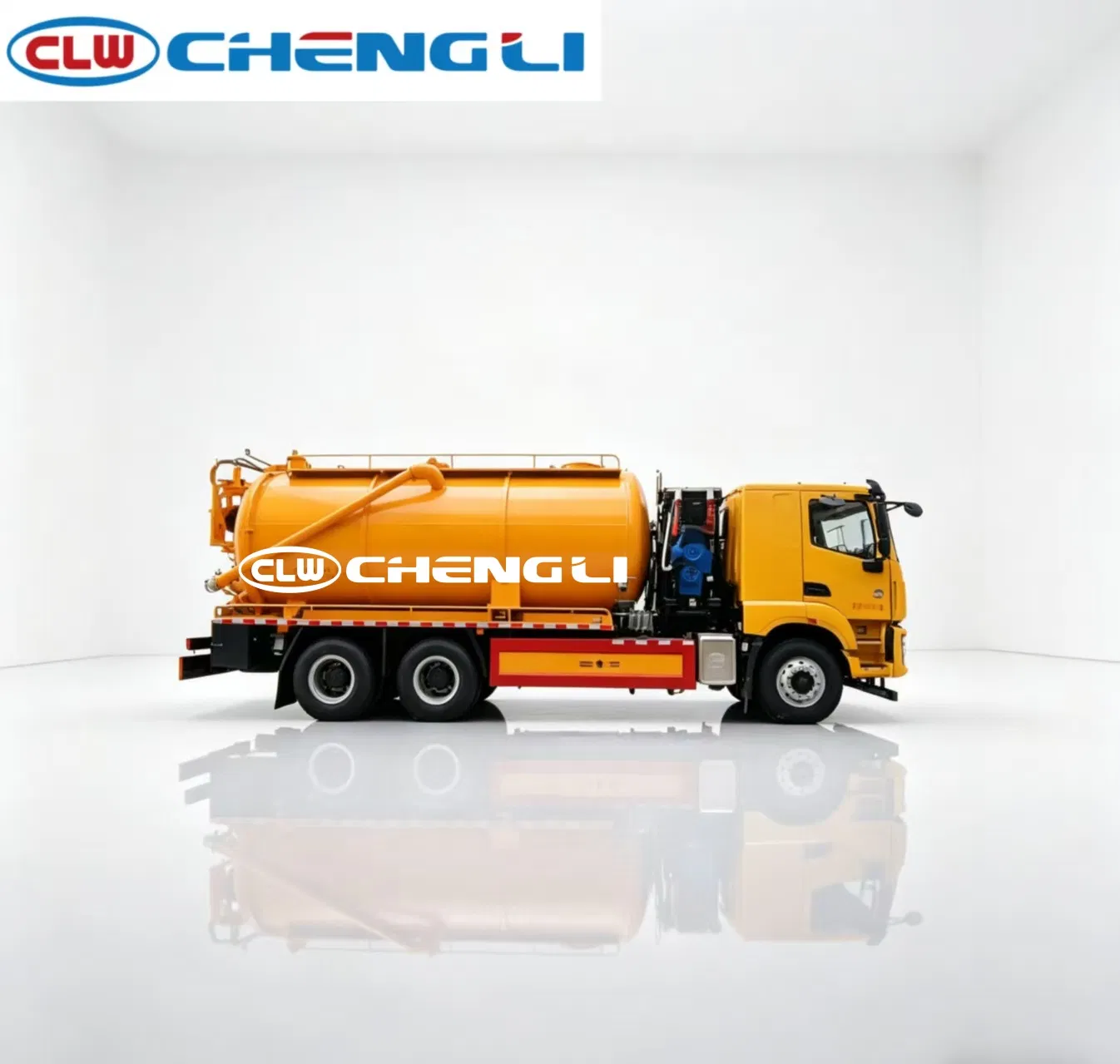

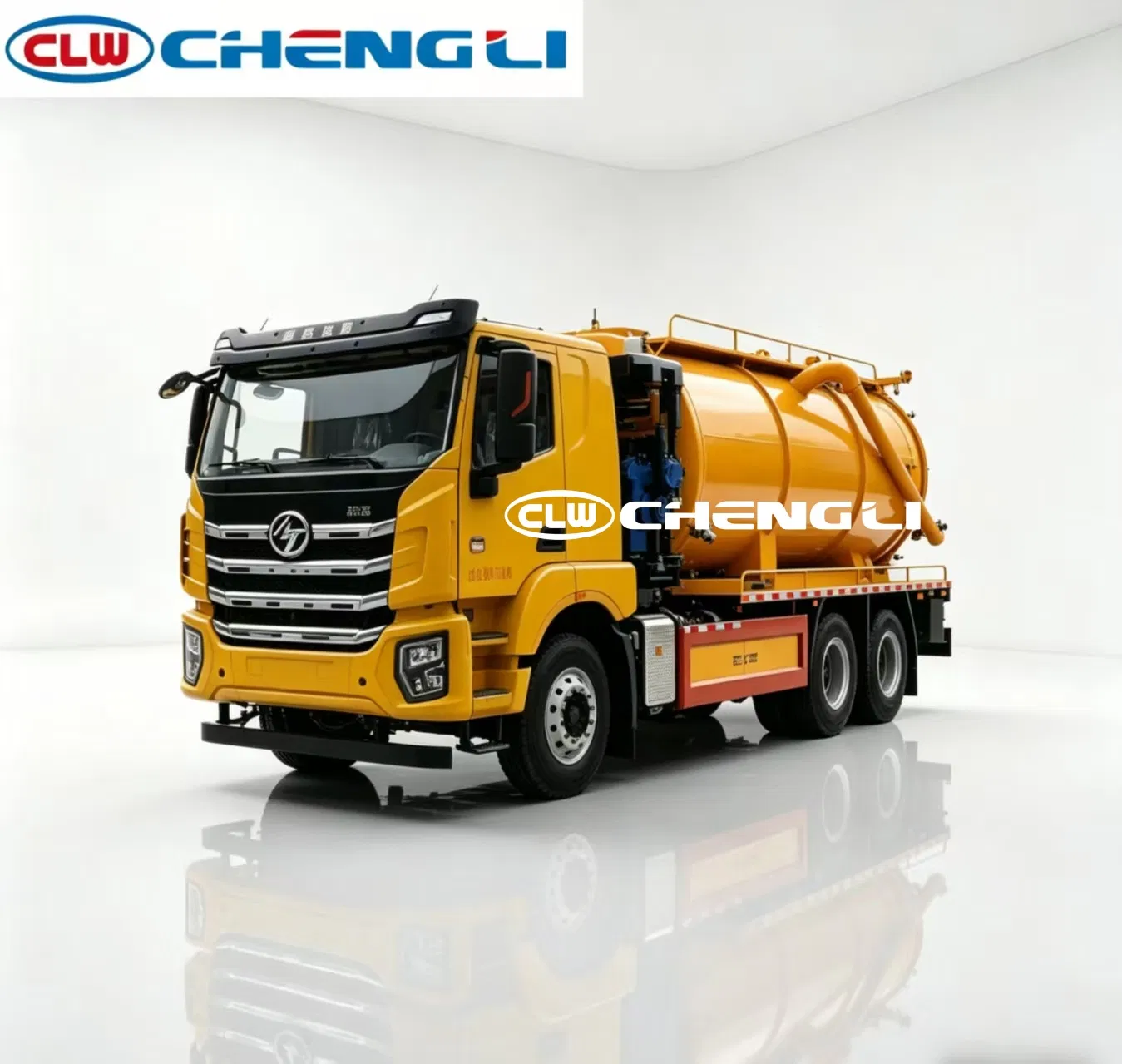

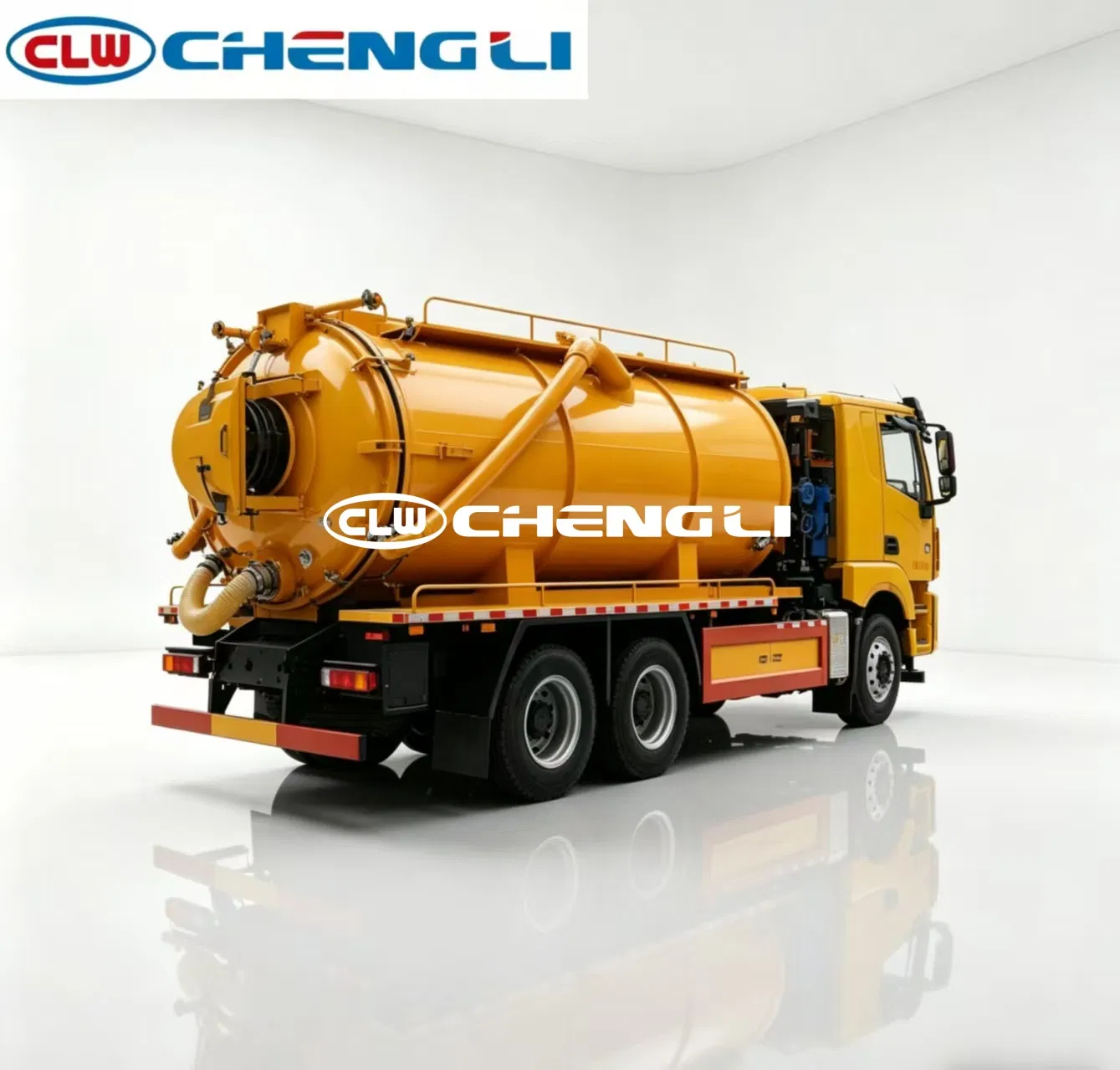

Hongyan 6×4 Vacuum Sewage Truck

Hongyan 6×4 Vacuum Sewage Truck is listed for sewage suction or sewer cleaning. The final tank or body capacity still needs confirmation against the chosen build. The listed working arrangement is vacuum suction with a source-listed washing or jetting arrangement; final equipment and legal payload require a signed specification.

Drive: 6x4
Fuel: Diesel
Transmission: Manual

Operational planning

Core capabilities

Capacity and output to confirm

Nominal tank volume is not a guaranteed liquid payload. Usable fill depends on the waste-water partition, liquid density, residual volume and legal axle loads; jetting output also depends on the specified pump and hose system.

Conditions: Use the signed vehicle specification and measured site or route inputs; no coverage or output guarantee is stated.

Actual results vary with: Actual duty cycle, loading, route conditions, equipment settings and refill or disposal time.

Vehicle specifications

Manufacturer: Chengli / CLW

Vehicle model: CL5250GQW6ACC

Chassis brand: Hongyan

Drive layout: 6x4

Fuel type: Diesel

Transmission: Manual

Wheelbase: 4700+1440 mm

Length: 10200 mm

Width: 2550 mm

Height: 3750 mm

Intended applications

sewage suction or sewer cleaning

Confirm the duty cycle, legal load and destination requirements against the final signed vehicle specification.

Supplier-listed configuration details

These are reference listing values, not a confirmed build or guaranteed performance. Request the signed technical schedule for the selected chassis and equipment.

Chassis and power

Chassis Axle Configutation: 6x4

Chassis Gearbox: 10-Speed Mannual

Chassis Tire Size: 11.00R20 18PR

Chassis Wheelbase Mm: 4700+1400

Working system

Supplier Listed System: vacuum suction with a source-listed washing or jetting arrangement

Suitable working conditions

Sewer or septic maintenance matched to the final tank and pump duty
Sites with a permitted disposal route

Check before selecting

Corrosive or hazardous liquids without materials and regulatory review
Discharge at unapproved locations or loading beyond legal axle limits

Product details

Hongyan 6×4 Vacuum Sewage Truck is listed for sewage suction or sewer cleaning. The final tank or body capacity still needs confirmation against the chosen build. The product listing describes vacuum suction with a source-listed washing or jetting arrangement. The source describes a Hongyan reference chassis in 6x4 layout. The listed power source is diesel; final engine or battery details must be checked against the chosen chassis.

Confirm the waste and clean-water tank split, tank material, vacuum and jetting pump data, hose layout, discharge method and destination rules before quotation. Price, lead time, certification and after-sales terms must be confirmed in a current written quotation or contract.

Verification

Trust and document status

Authorization

Africa Municipal Trucks is operated by Chengli Automobile Group's own team. We work directly with Chengli's Suizhou manufacturing operations to confirm vehicle specifications, coordinate production and prepare export documents for each order.

Factory inspection

We can coordinate a visit to Chengli's Suizhou production facilities and, if requested, an independent pre-shipment inspection. The inspection scope, access and timing are agreed for the confirmed order.

Important operating note

Confirm the waste and clean-water tank split, tank material, vacuum and jetting pump data, hose layout, discharge method and destination rules before quotation.

Custom quotation

Information needed for an accurate offer

Send the actual working conditions so the chassis, tank, pump, steering and compliance package can be checked before quotation.

Provide the destination port and final inland delivery point in Nigeria, Ghana, Kenya, Tanzania, Zambia or Zimbabwe for a project freight calculation.

Wastewater, sludge and solids characteristics
Required waste and clean-water tank capacities
Required suction depth and hose length
Jetting pressure and flow requirement
Daily routes and disposal distance
Destination country and port
Emission standard and steering side
Quantity and delivery date

Send RFQ details

Checks before a formal quotation

Confirm chassis brand and model
Confirm tank material, thickness and partition
Confirm vacuum and jetting pump data
Confirm hose lengths, reels and safety valves
Confirm legal payload and axle loads
Confirm destination compliance, Incoterm and warranty
