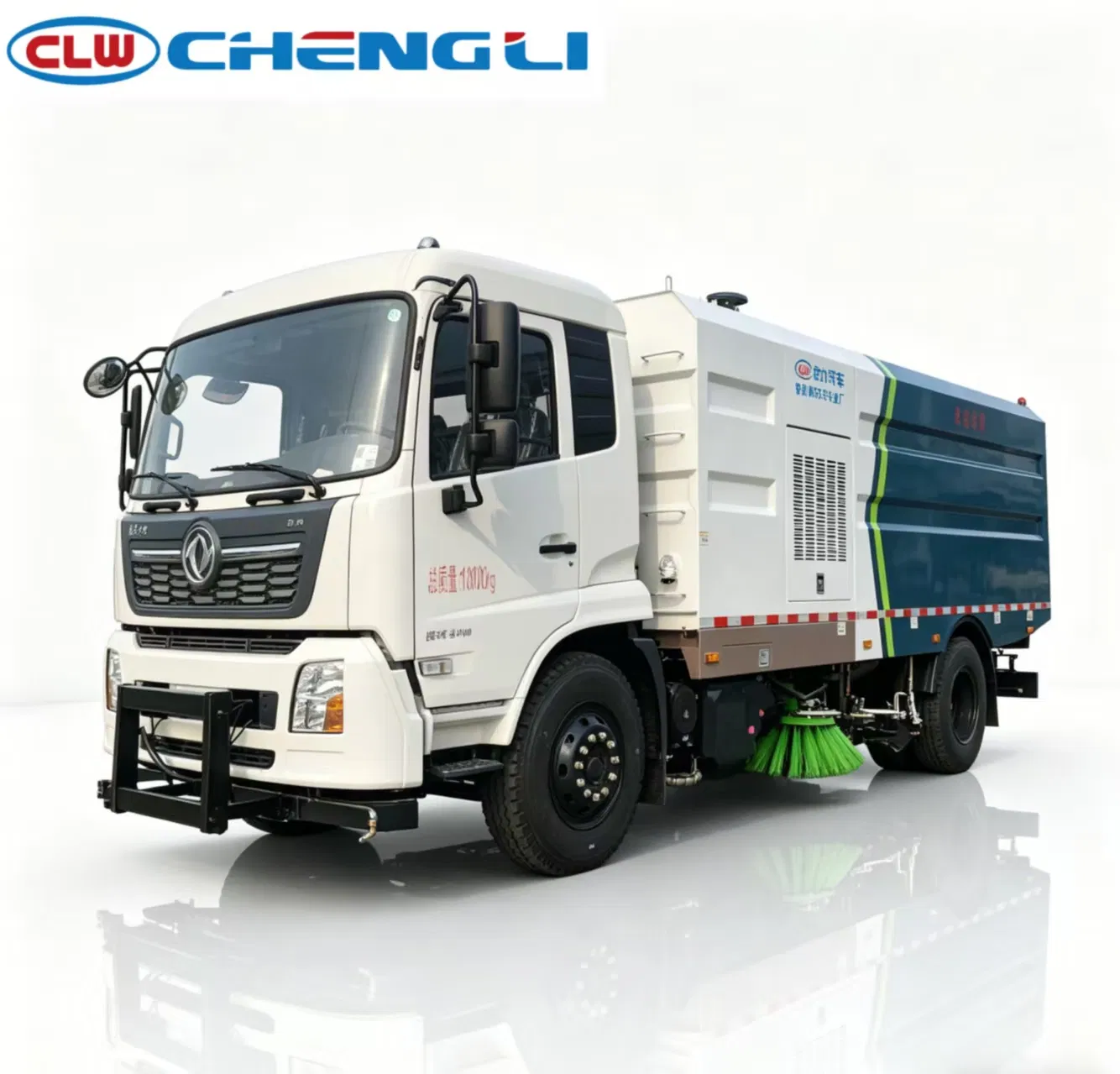

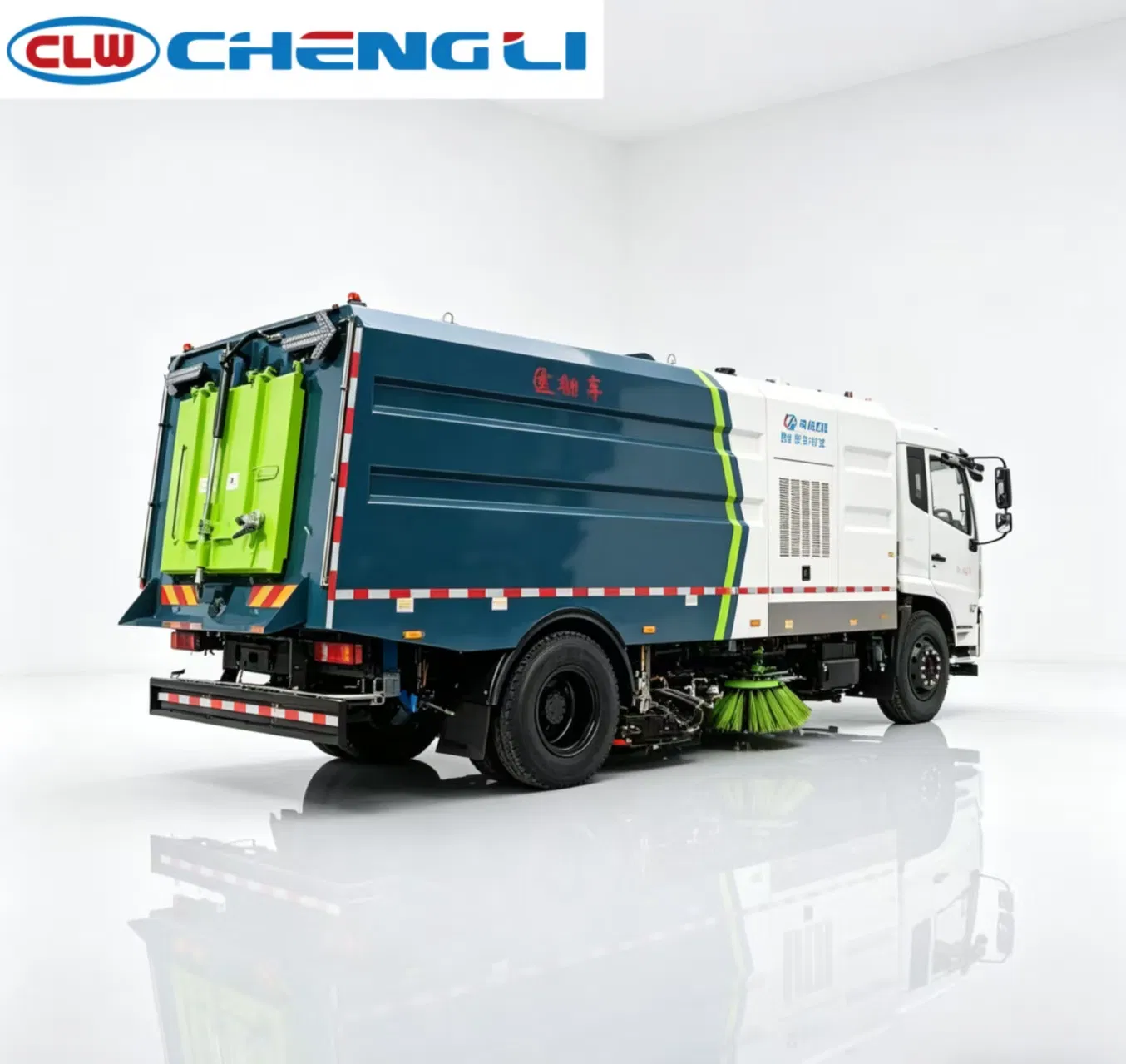

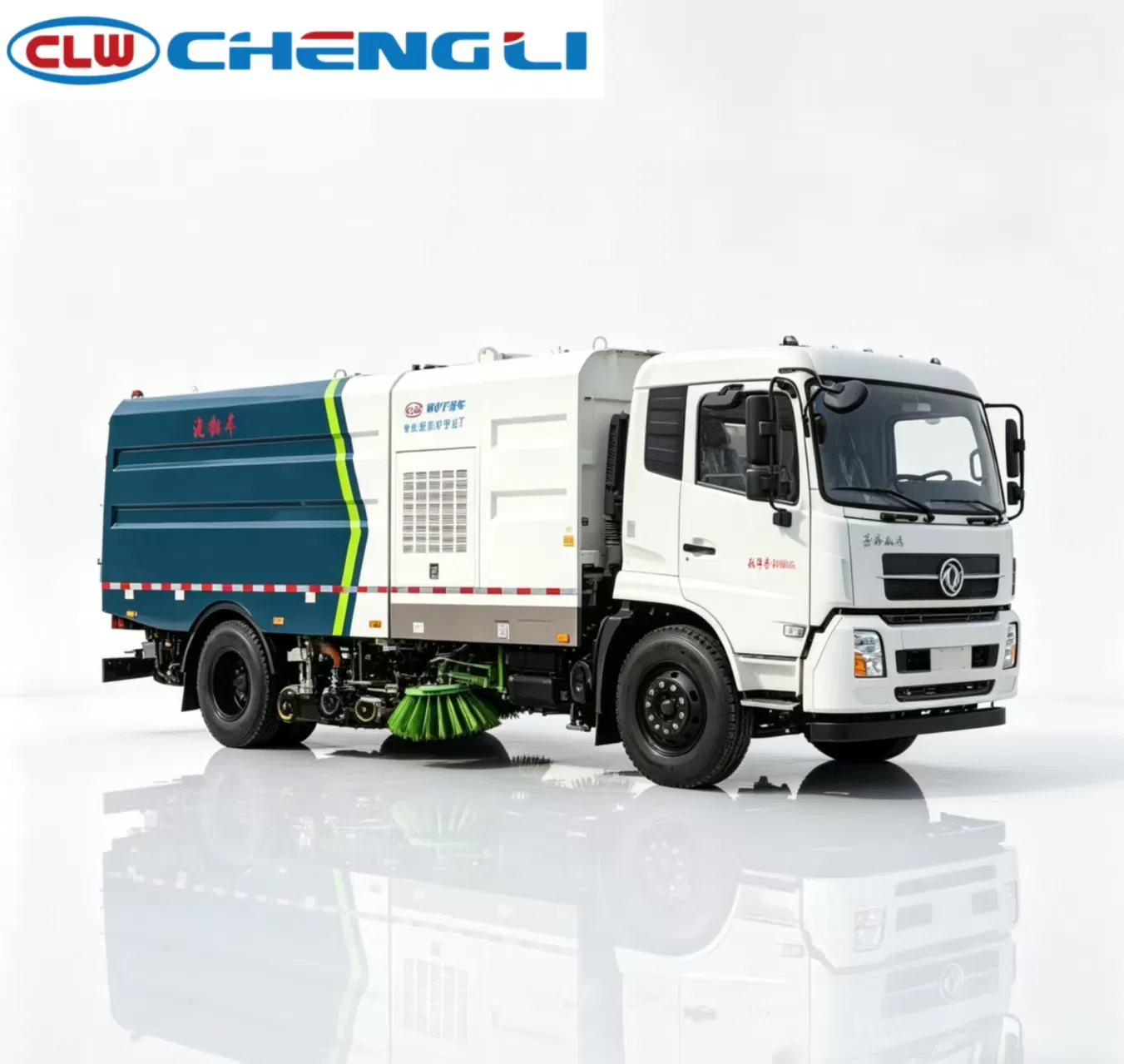

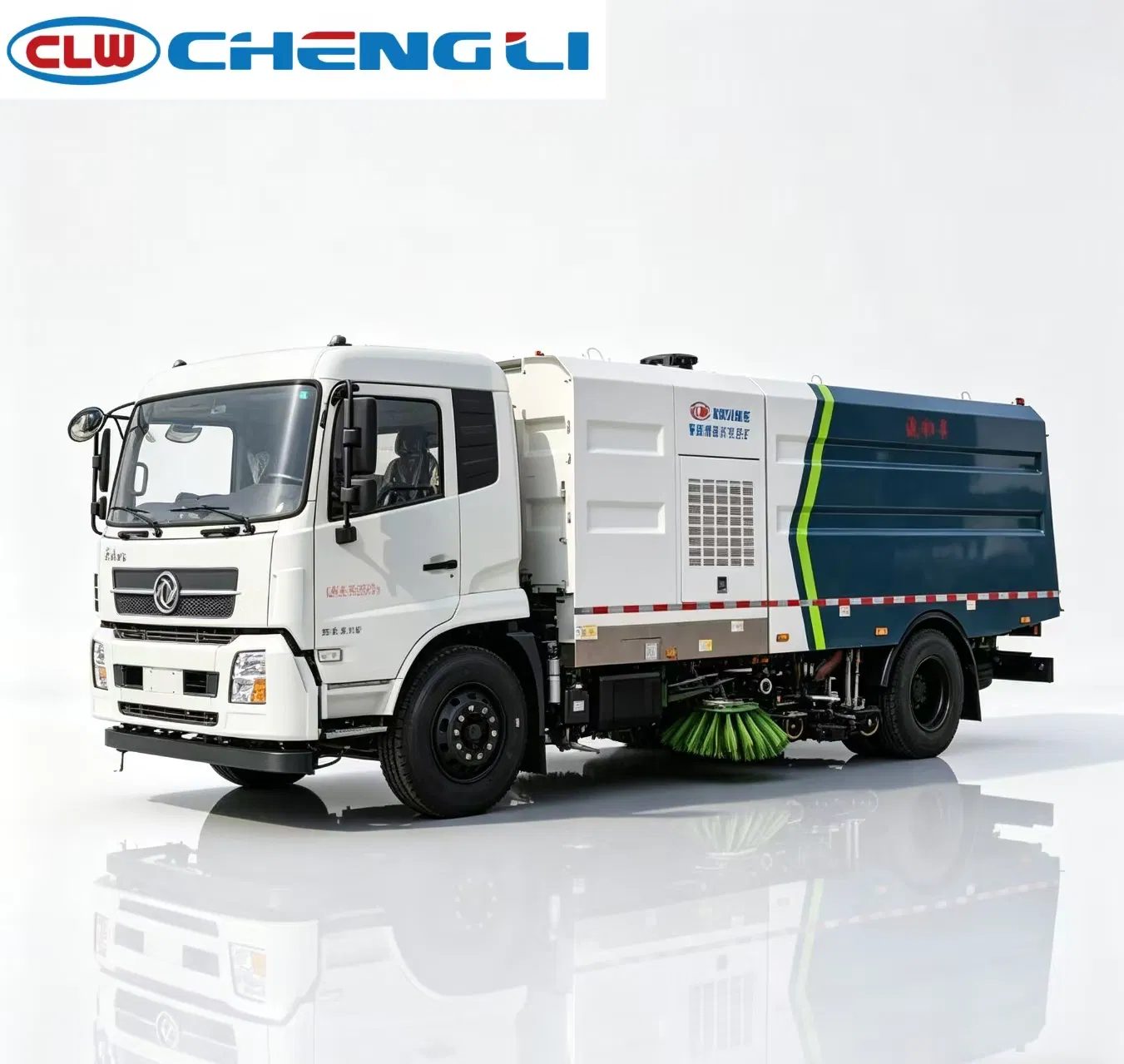

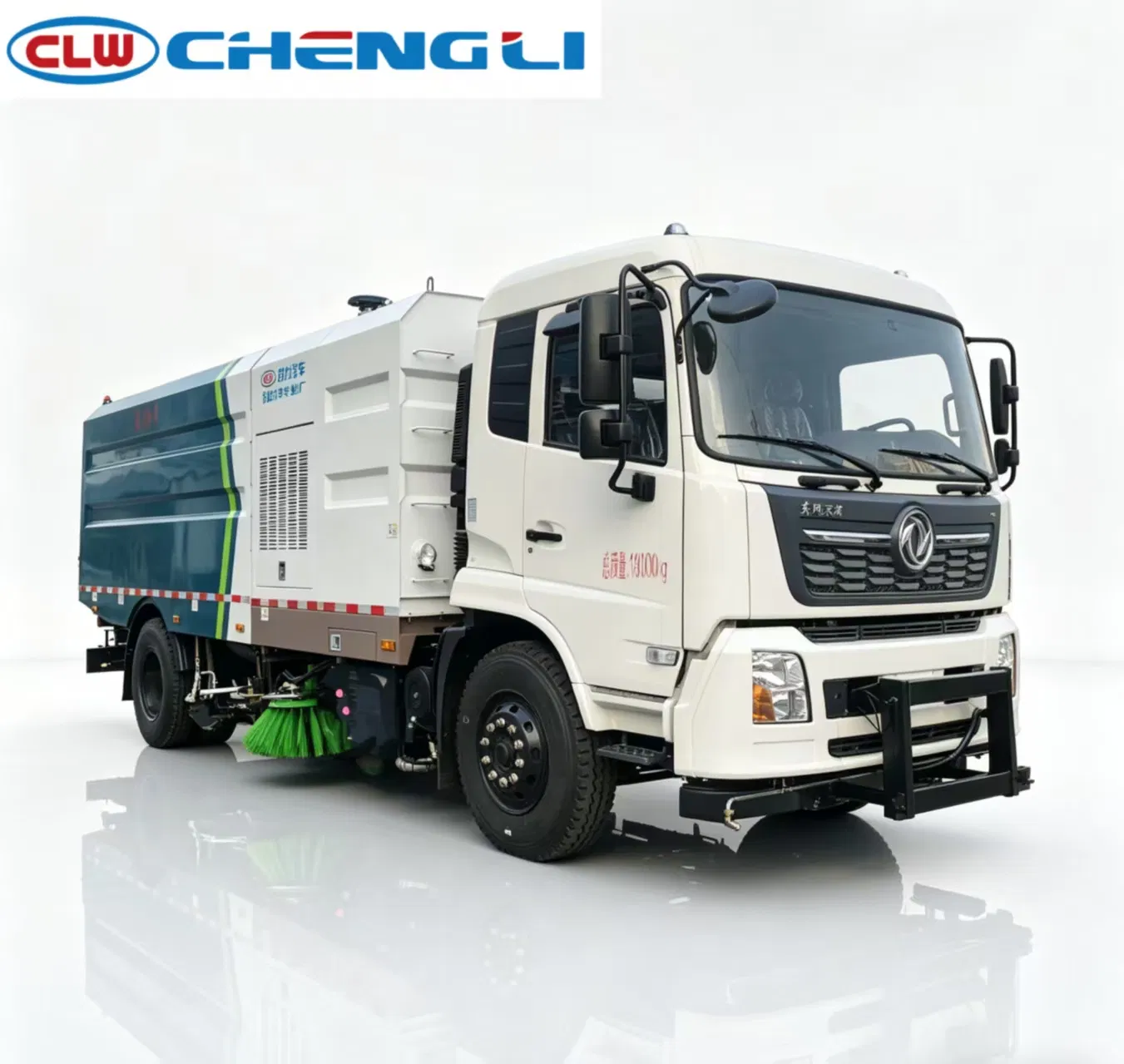

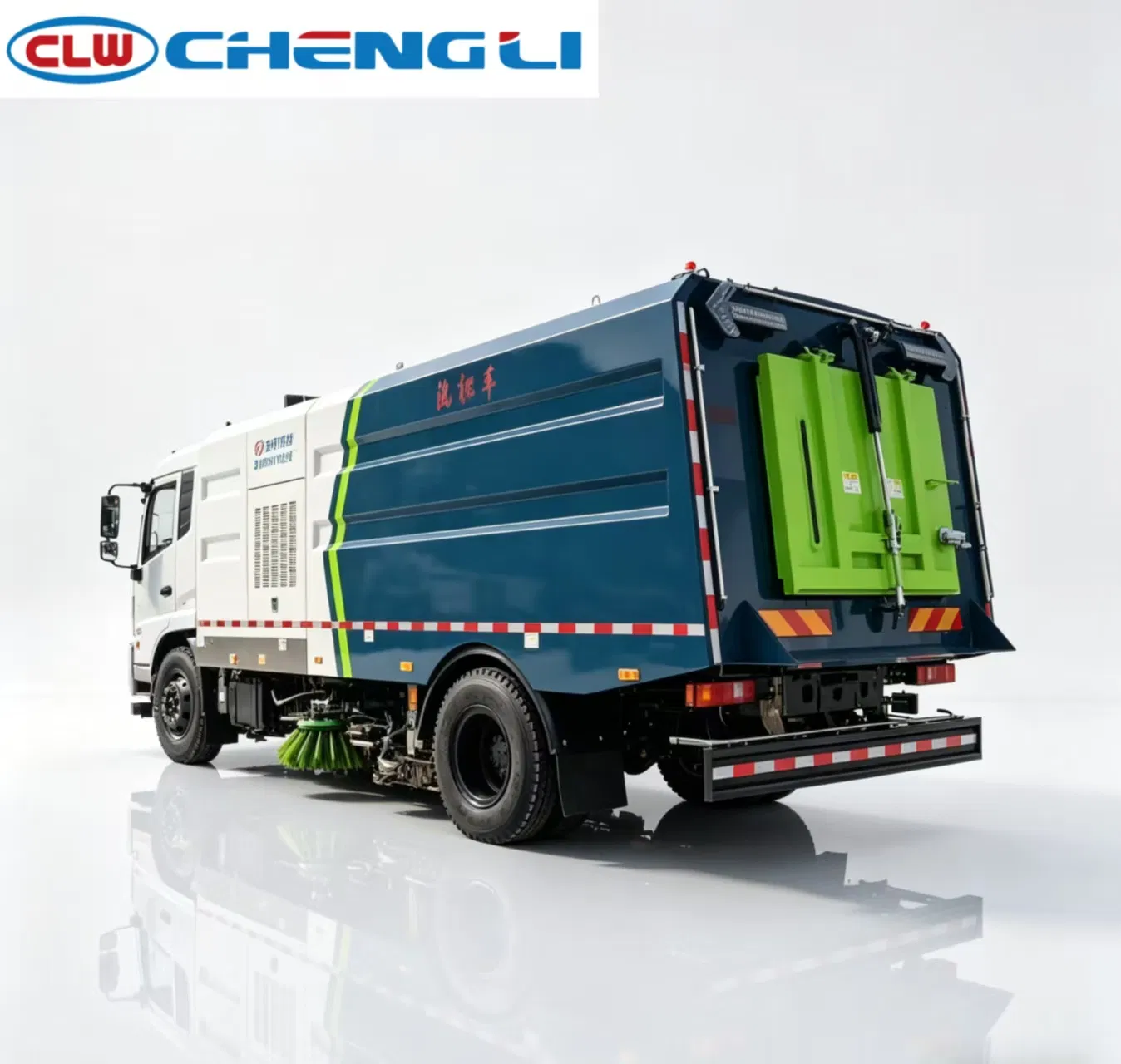

Dongfeng Heavy-Duty Street Sweeper Truck

Dongfeng Heavy-Duty Street Sweeper Truck is listed for road sweeping and washing. The final tank or body capacity still needs confirmation against the chosen build. The listed working arrangement is mechanical road sweeping; final equipment and legal payload require a signed specification.

Transmission: Manual
GVW: 18,000 kg

Operational planning

Core capabilities

Capacity and output to confirm

A sweeper’s water and debris capacities, cleaning width and working speed must be confirmed together. A route-coverage estimate needs measured water flow, width and speed; those inputs are not established for this listing.

Conditions: Use the signed vehicle specification and measured site or route inputs; no coverage or output guarantee is stated.

Actual results vary with: Actual duty cycle, loading, route conditions, equipment settings and refill or disposal time.

Vehicle specifications

Manufacturer: Chengli / CLW

Vehicle model: Street sweeper

Chassis brand: Dongfeng

Transmission: Manual

Wheelbase: 5000 mm

Length: 8650 mm

Width: 2500 mm

Height: 3150 mm

Gross vehicle weight: 18000 kg

Rated payload: 6430 kg

Intended applications

road sweeping and washing

Confirm the duty cycle, legal load and destination requirements against the final signed vehicle specification.

Supplier-listed configuration details

These are reference listing values, not a confirmed build or guaranteed performance. Request the signed technical schedule for the selected chassis and equipment.

Chassis and power

Chassis Front Rear Suspension: 1430/23600 mm

Chassis Maximum Cleaning Capacity: 52500 m³/h

Chassis Maximum Height Of The Suction Cup Above The Ground: 220 mm

Chassis Tire: 295/80R22.5 18PR

Chassis Wheelbase Fbe11E0D95: 5000mm

Body and tank

Upper Structure Rear Suction Nozzle: Yes

Upper Structure Tank Material 7D3C7Fbc65: Q235 Carbon Steel

Upper Structure Thickness: 4.5 mm

Upper Structure Water Tank Dustbin: 9m³ ; 7m³

Working system

Supplier Listed System: mechanical road sweeping

Suitable working conditions

Paved cleaning routes compatible with the final working width and chassis
Dust and light debris within the signed equipment specification

Check before selecting

Hazardous waste or heavy rubble without a dedicated approved configuration
Routes exceeding the final chassis, axle-load or road-access limits

Product details

Dongfeng Heavy-Duty Street Sweeper Truck is listed for road sweeping and washing. The final tank or body capacity still needs confirmation against the chosen build. The product listing describes mechanical road sweeping. The source describes a Dongfeng reference chassis. Powertrain details must be confirmed for the ordered chassis.

Confirm the cleaning mode, water and debris tanks, brush or suction arrangement, paved-route conditions, charging or fuel needs, and legal mass before quotation. Price, lead time, certification and after-sales terms must be confirmed in a current written quotation or contract.

Verification

Trust and document status

Authorization

Africa Municipal Trucks is operated by Chengli Automobile Group's own team. We work directly with Chengli's Suizhou manufacturing operations to confirm vehicle specifications, coordinate production and prepare export documents for each order.

Factory inspection

We can coordinate a visit to Chengli's Suizhou production facilities and, if requested, an independent pre-shipment inspection. The inspection scope, access and timing are agreed for the confirmed order.

Important operating note

Confirm the cleaning mode, water and debris tanks, brush or suction arrangement, paved-route conditions, charging or fuel needs, and legal mass before quotation.

Custom quotation

Information needed for an accurate offer

Send the actual working conditions so the chassis, tank, pump, steering and compliance package can be checked before quotation.

Provide the destination port and final inland delivery point in Nigeria, Ghana, Kenya, Tanzania, Zambia or Zimbabwe for a project freight calculation.

Road length and surface type
Required sweeping width
Dust and litter type
Daily operating hours
Water-source availability
Destination country and port
Emission standard and steering side
Quantity and delivery date

Send RFQ details

Checks before a formal quotation

Confirm chassis and powertrain
Confirm water and debris-tank capacities
Confirm working width and operating speed
Confirm brush, suction and spray arrangement
Confirm destination compliance documents
Confirm Incoterm, freight and warranty
