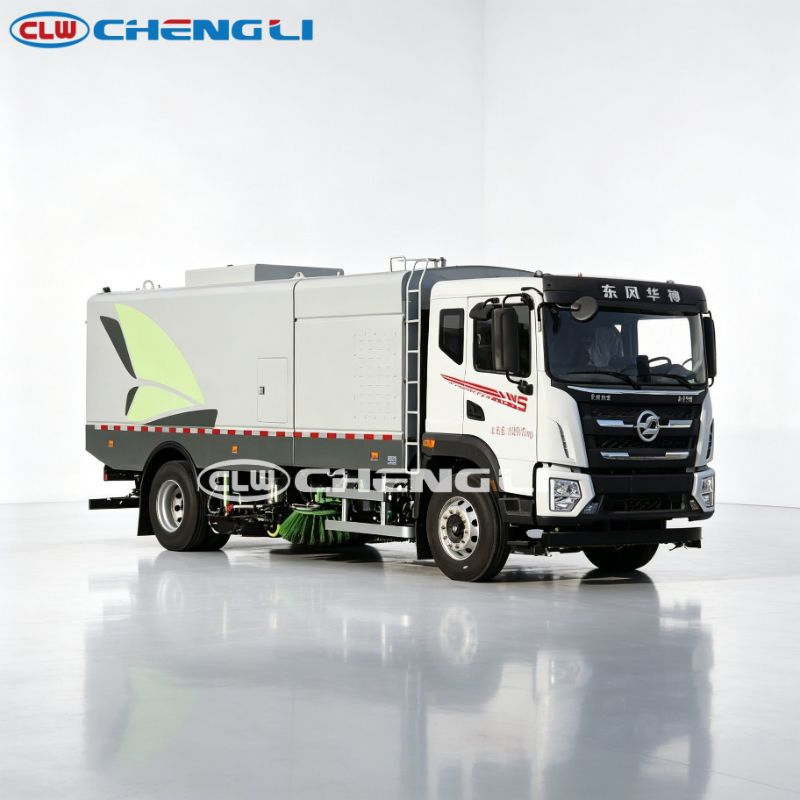

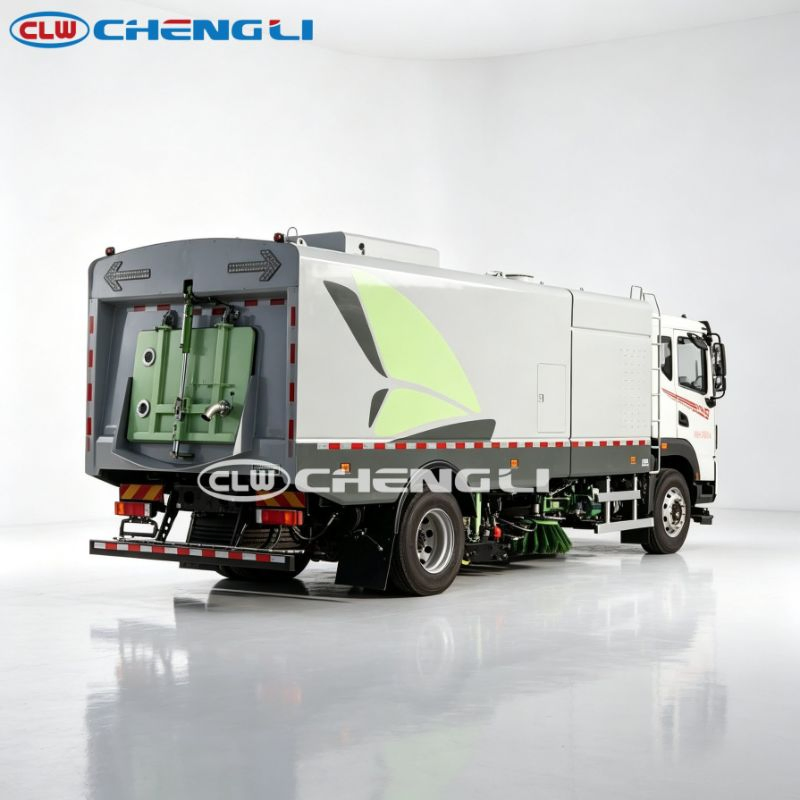

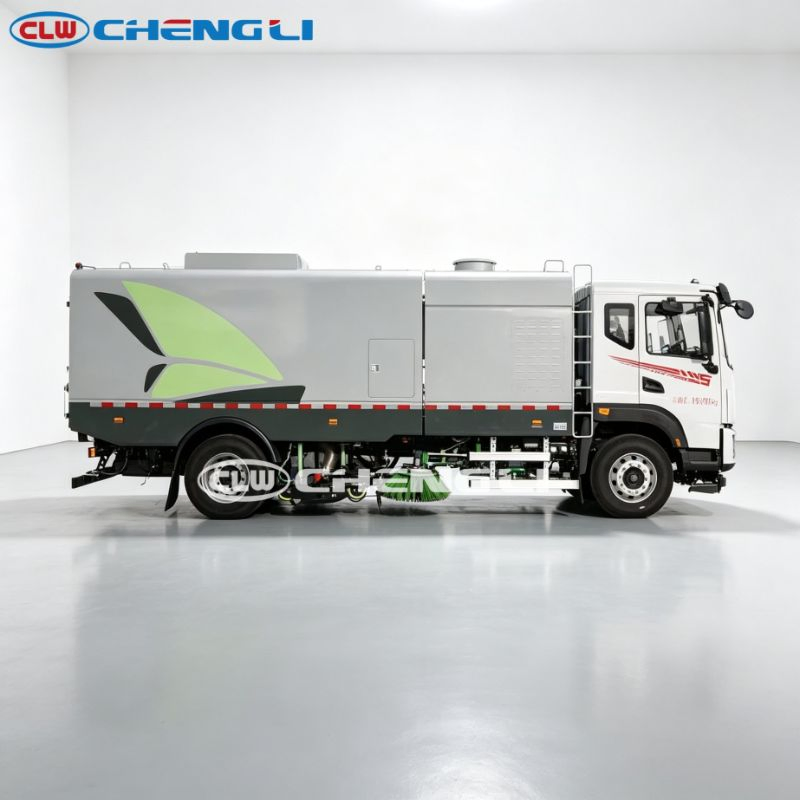

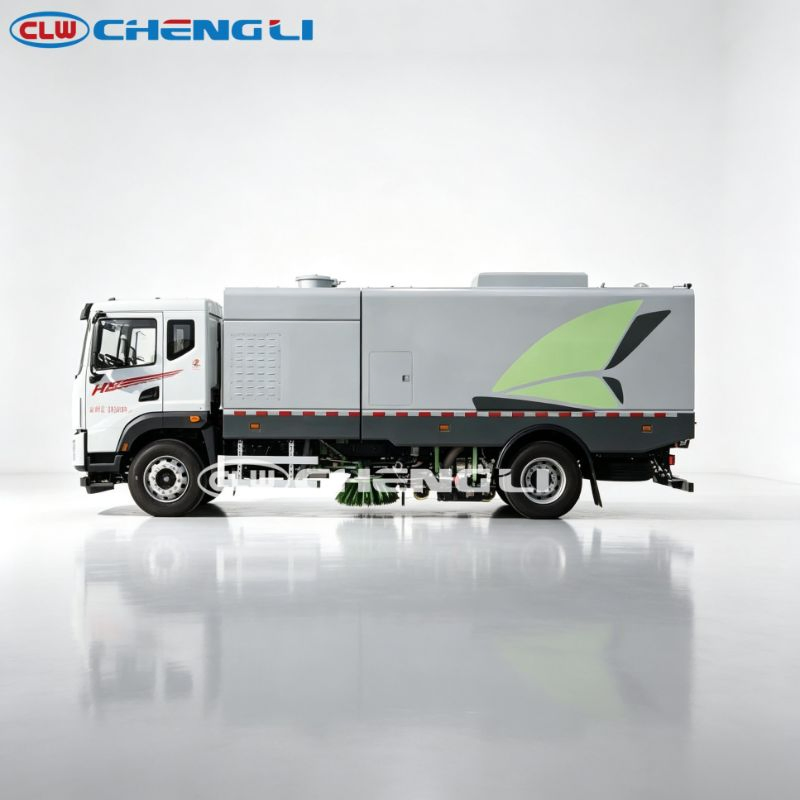

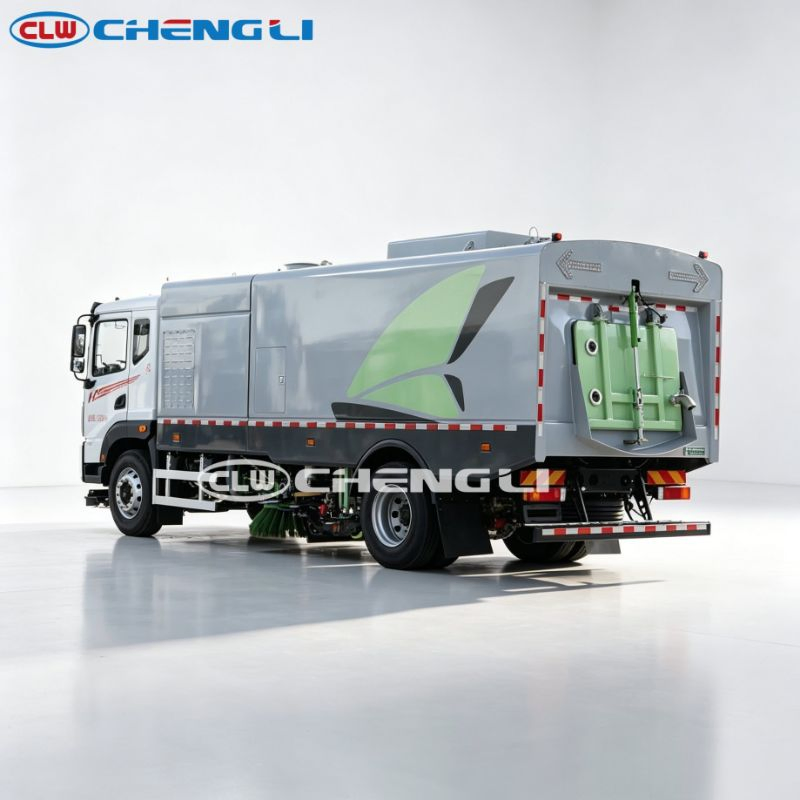

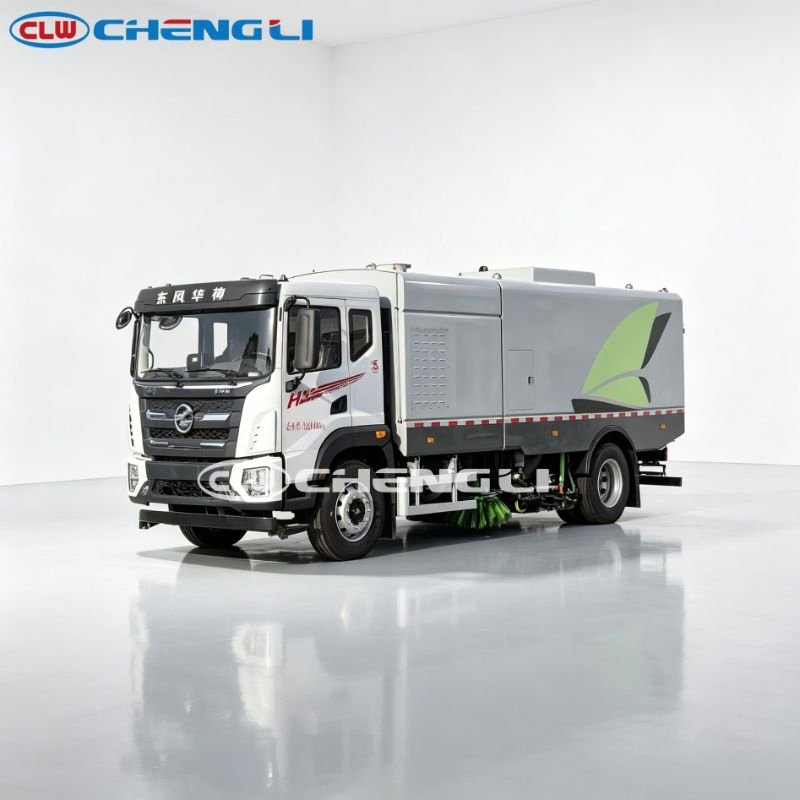

18-Ton Electric Sweeper with 262.7 kWh CATL Battery

18-Ton Electric Sweeper with 262.7 kWh CATL Battery is listed for road sweeping and washing. The final tank or body capacity still needs confirmation against the chosen build. The listed working arrangement is combined road washing and sweeping; final equipment and legal payload require a signed specification.

Fuel: Pure Electric
Transmission: Electric Drive
GVW: 18,000 kg

Operational planning

Core capabilities

Capacity and output to confirm

A sweeper’s water and debris capacities, cleaning width and working speed must be confirmed together. A route-coverage estimate needs measured water flow, width and speed; those inputs are not established for this listing.

Conditions: Use the signed vehicle specification and measured site or route inputs; no coverage or output guarantee is stated.

Actual results vary with: Actual duty cycle, loading, route conditions, equipment settings and refill or disposal time.

Vehicle specifications

Manufacturer: Chengli / CLW

Vehicle model: CLH5180

Fuel type: Pure Electric

Transmission: Electric Drive

Wheelbase: 5100 mm

Length: 8850 mm

Width: 2550 mm

Height: 3300 mm

Gross vehicle weight: 18000 kg

Curb weight: 13300 kg

Rated payload: 4105 kg

Intended applications

road sweeping and washing

Confirm the duty cycle, legal load and destination requirements against the final signed vehicle specification.

Supplier-listed configuration details

These are reference listing values, not a confirmed build or guaranteed performance. Request the signed technical schedule for the selected chassis and equipment.

Chassis and power

Chassis Air Conditioning: Cold & warm air conditioner

Chassis Approach Departure Angle: 18°/10°, 18°/9°

Chassis Auxiliary Functions: Anti-overflow & low water level alarm, reversing monitoring, working status indoor monitoring, rear LED arrow light, rear electric control operation system

Chassis Axle Load: 6500 /11500 kg

Chassis Battery Brand: CATL

Chassis Battery Capacity: 262.7 kWh

Chassis Battery Rated Total Voltage: 656.88 V

Chassis Battery Type: Lithium Iron Phosphate

Chassis Cabin: Huashen HV5 Cabin

Chassis Central Lock: Equipped

Chassis Cleaning Width: 2.5-3.5 m

Chassis Drive Type: Permanent magnet synchronous motor drive

Chassis Driving Range: 300 km

Chassis Front Rear Axle Load: 6.5 T /13 T

Chassis Front Rear Suspension: 1410/2390, 1410/2340, 1410/2240 mm

Chassis Front Track: 1900-2050 mm

Chassis High Pressure Washing Disk: 15 m

Chassis Low Pressure Flushing Distance: 21 m

Chassis Main Equipment: High-pressure water pump, gear pump, hydraulic cylinder, hydraulic valve group, centrifugal fan, carbon steel anti-corrosion water tank, stainless steel high-pressure pipeline

Chassis Maximum Speed: 85 km/h

Chassis Motor Rated Peak Power: 150 kW / 252 kW

Chassis Number Of Axles: 2

Chassis Number Of Tires: 6 pcs

Chassis Rated Payload: 4105-4570 kg

Chassis Rear Track: 1820-1860 mm

Chassis Recommended Charging Pile Power: 120 kW

Chassis Superstructure Power Consumption Per Hour: 40-50 kWh

Chassis Sweeping Disc: 2 middle-placed sweeping discs with hydraulic motor

Chassis Tire Specification: 295/80R22.5 18PR

Chassis Wheelbase: 5100 mm

Working system

Supplier Listed System: combined road washing and sweeping

Suitable working conditions

Paved cleaning routes compatible with the final working width and chassis
Dust and light debris within the signed equipment specification

Check before selecting

Hazardous waste or heavy rubble without a dedicated approved configuration
Routes exceeding the final chassis, axle-load or road-access limits

Product details

18-Ton Electric Sweeper with 262.7 kWh CATL Battery is listed for road sweeping and washing. The final tank or body capacity still needs confirmation against the chosen build. The product listing describes combined road washing and sweeping. The exact chassis and steering configuration remain to be confirmed. The listed power source is pure electric; final engine or battery details must be checked against the chosen chassis.

Confirm the cleaning mode, water and debris tanks, brush or suction arrangement, paved-route conditions, charging or fuel needs, and legal mass before quotation. Price, lead time, certification and after-sales terms must be confirmed in a current written quotation or contract.

Verification

Trust and document status

Authorization

Africa Municipal Trucks is operated by Chengli Automobile Group's own team. We work directly with Chengli's Suizhou manufacturing operations to confirm vehicle specifications, coordinate production and prepare export documents for each order.

Factory inspection

We can coordinate a visit to Chengli's Suizhou production facilities and, if requested, an independent pre-shipment inspection. The inspection scope, access and timing are agreed for the confirmed order.

Important operating note

Confirm the cleaning mode, water and debris tanks, brush or suction arrangement, paved-route conditions, charging or fuel needs, and legal mass before quotation.

Custom quotation

Information needed for an accurate offer

Send the actual working conditions so the chassis, tank, pump, steering and compliance package can be checked before quotation.

Provide the destination port and final inland delivery point in Nigeria, Ghana, Kenya, Tanzania, Zambia or Zimbabwe for a project freight calculation.

Road length and surface type
Required sweeping width
Dust and litter type
Daily operating hours
Water-source availability
Destination country and port
Emission standard and steering side
Quantity and delivery date

Send RFQ details

Checks before a formal quotation

Confirm chassis and powertrain
Confirm water and debris-tank capacities
Confirm working width and operating speed
Confirm brush, suction and spray arrangement
Confirm destination compliance documents
Confirm Incoterm, freight and warranty
