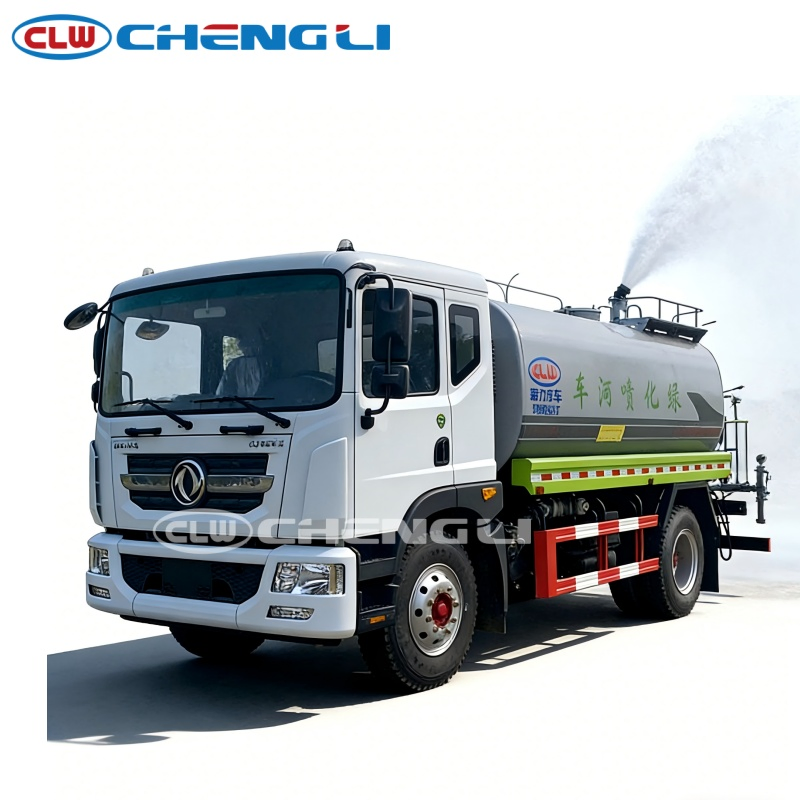

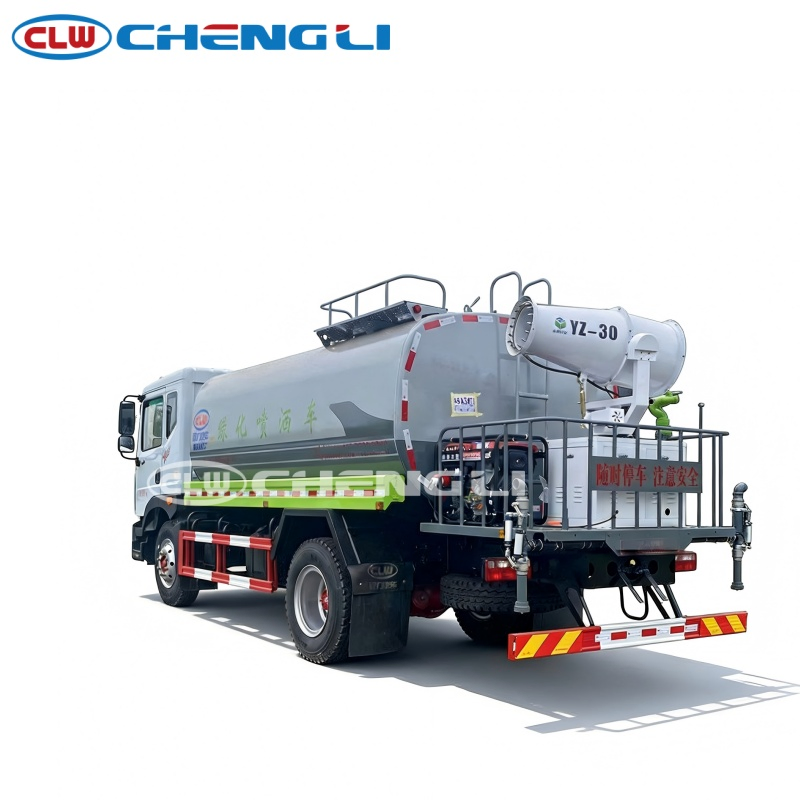

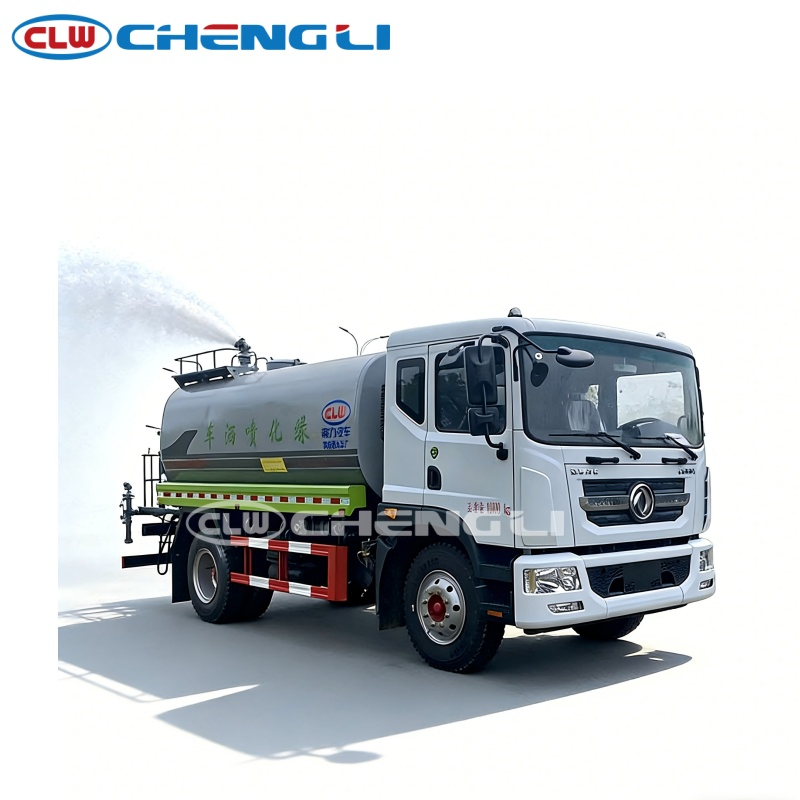

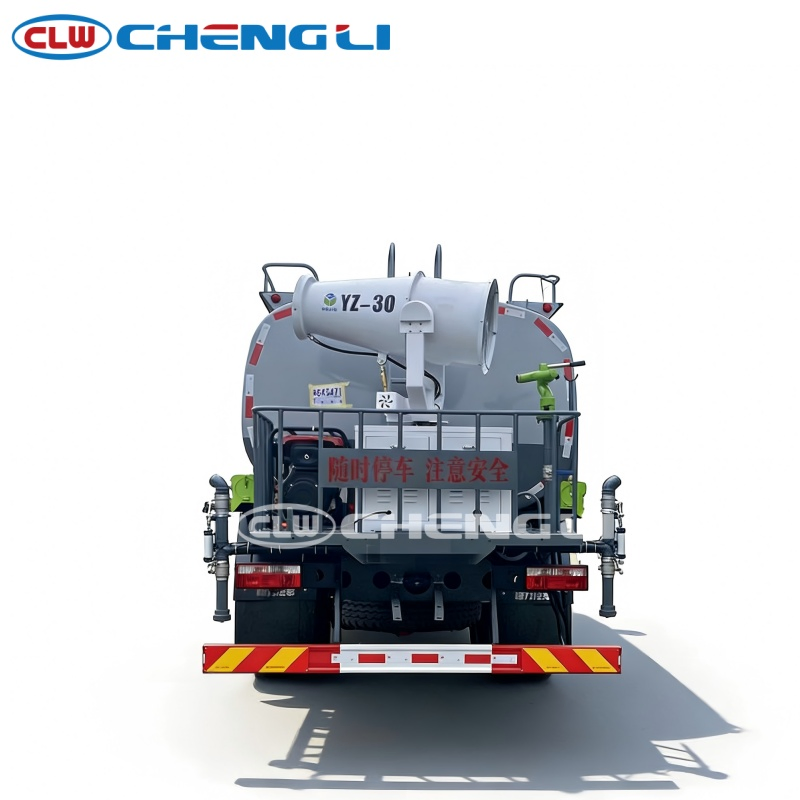

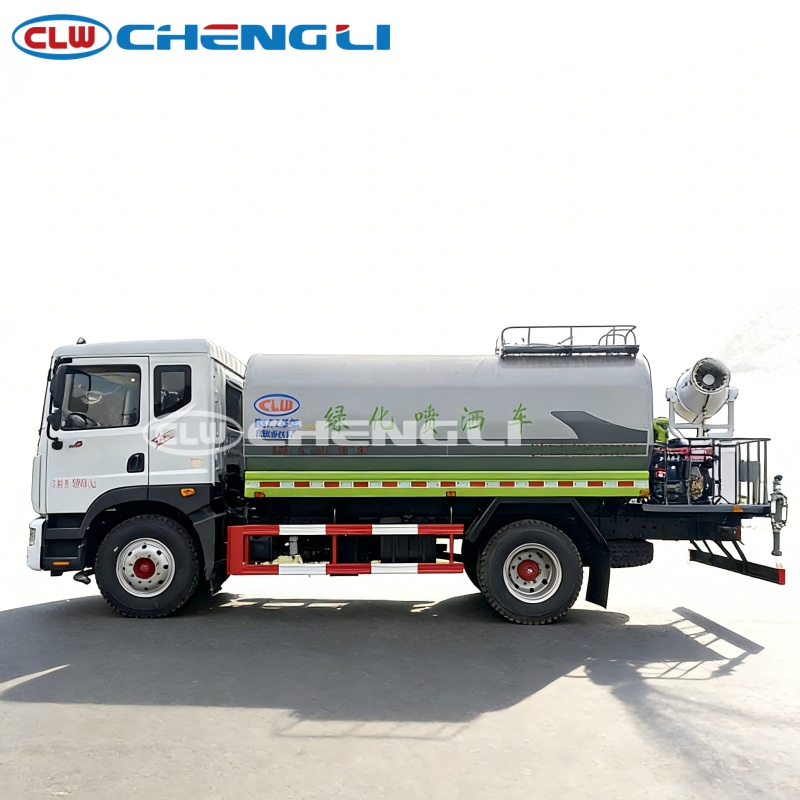

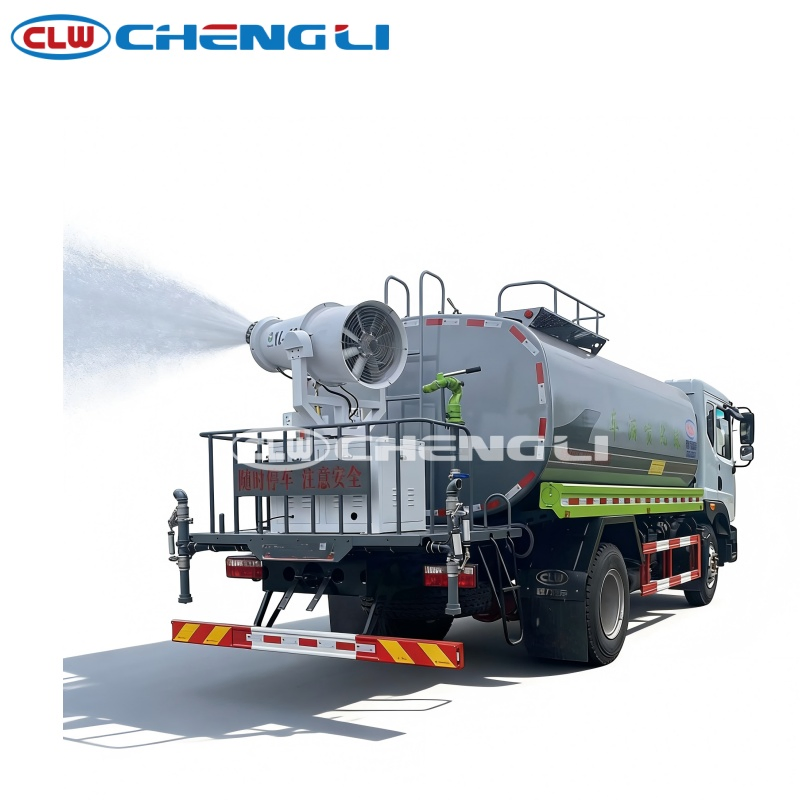

18-Ton Guardrail Washer with 9.77 m³ Water Tank

18-Ton Guardrail Washer with 9.77 m³ Water Tank is listed for water delivery, road wetting or washing. The supplier listing describes 9.77 m³ water tank. The listed working arrangement is guardrail washing with a water tank; final equipment and legal payload require a signed specification.

Capacity: 9.77 m³ water tank (supplier listing)
Drive: 4×2
Fuel: Diesel
Transmission: Manual
GVW: 18,000 kg
Maximum speed: 105 km/h

Operational planning

Core capabilities

9.77 m³ water tank (supplier listing)

Tank volume describes stored water, not guaranteed kilometres or square metres covered. A route estimate requires verified nozzle flow, spray width, operating speed, overlap and refill time; these inputs are not established for this listing.

Conditions: Use the signed vehicle specification and measured site or route inputs; no coverage or output guarantee is stated.

Actual results vary with: Actual duty cycle, loading, route conditions, equipment settings and refill or disposal time.

Vehicle specifications

Manufacturer: Chengli Automobile (Wuhan) Co., Ltd. / CLW

Vehicle model: 18 Tons 9.77 CBM Water Tank Truck

Drive layout: 4×2

Steering side: To be confirmed

Powertrain: Diesel engine with manual transmission

Fuel type: Diesel

Transmission: Manual

Wheelbase: 4700 mm, customizable

Length: 9500 mm

Width: 2500 mm

Height: 3300 mm

Gross vehicle weight: 18000 kg

Curb weight: 8495 kg

Rated payload: 10000 kg

Primary capacity: 9.77 m³ water tank (supplier listing)

Maximum speed: 105 km/h

Intended applications

water delivery, road wetting or washing

Confirm the duty cycle, legal load and destination requirements against the final signed vehicle specification.

Supplier-listed configuration details

These are reference listing values, not a confirmed build or guaranteed performance. Request the signed technical schedule for the selected chassis and equipment.

Chassis and power

Approach Departure Angle: 19/11 or 19/10°

Axle Load: 6,500 / 11,500 kg

Axles: 2

Horsepower: 259 PS

Overhang: 1450 / 2350 mm

Seats: 3

Tyres: 10.00R20 18PR, 6 tyres

Body and tank

Tank Capacity: 9.77 m³

Working system

Flow Rate: 215 L/min

Purpose: Guardrail washing and road cleaning

Supplier Listed System: guardrail washing with a water tank

Operating performance

Maximum Speed: 105 km/h

Sprinkling Area: 12–16 m

Working Speed: 5–8 km/h

Suitable working conditions

Water transport or road wetting where the final tank, pump and water-use rules are confirmed

Check before selecting

Potable-water service without a food-grade tank and relevant approval
Operation above the final legal payload or axle limits

Product details

18-Ton Guardrail Washer with 9.77 m³ Water Tank is listed for water delivery, road wetting or washing. The supplier listing describes 9.77 m³ water tank. The product listing describes guardrail washing with a water tank. The exact chassis and steering configuration remain to be confirmed. The listed power source is diesel; final engine or battery details must be checked against the chosen chassis.

Confirm the final tank volume and unit, tank material, pump flow, spray equipment, water source, axle loads and destination requirements before quotation. Price, lead time, certification and after-sales terms must be confirmed in a current written quotation or contract.

Verification

Trust and document status

Authorization

Africa Municipal Trucks is operated by Chengli Automobile Group's own team. We work directly with Chengli's Suizhou manufacturing operations to confirm vehicle specifications, coordinate production and prepare export documents for each order.

Factory inspection

We can coordinate a visit to Chengli's Suizhou production facilities and, if requested, an independent pre-shipment inspection. The inspection scope, access and timing are agreed for the confirmed order.

Important operating note

Confirm the final tank volume and unit, tank material, pump flow, spray equipment, water source, axle loads and destination requirements before quotation.

Custom quotation

Information needed for an accurate offer

Send the actual working conditions so the chassis, tank, pump, steering and compliance package can be checked before quotation.

Provide destination port and inland delivery point; recalculate freight from the signed configuration.

Required water capacity
Water type and use
Daily route and road width
Spray or washing task
Destination country and port
Emission and steering requirements
Quantity and required options

Send RFQ details

Checks before a formal quotation

Confirm final chassis and drive layout
Confirm tank capacity and legal payload
Confirm pump/nozzle or washing system
Confirm destination compliance documents
Confirm Incoterm, freight and warranty
