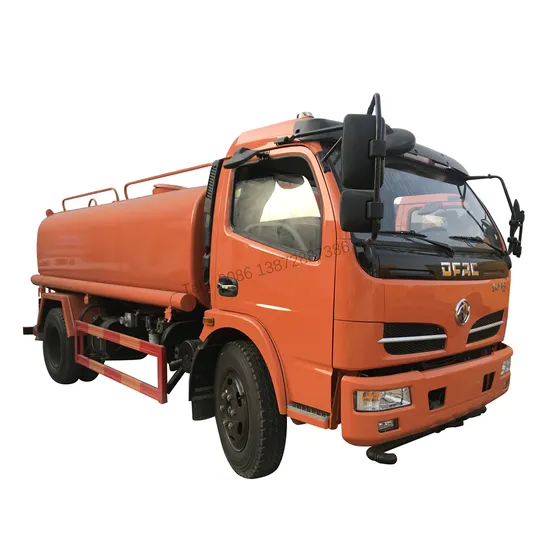

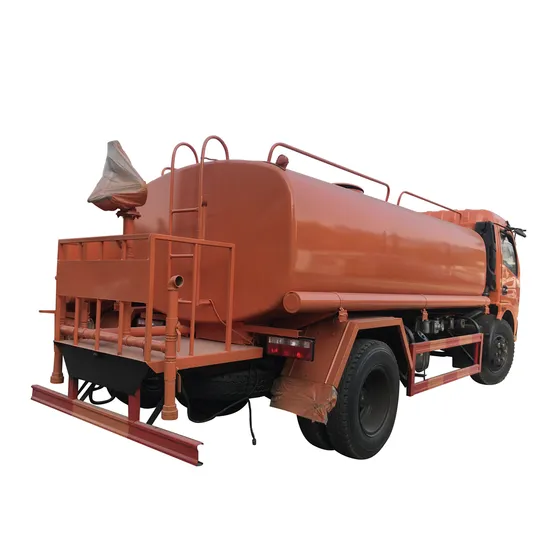

Dongfeng 5,000–7,000 L Stainless Water Tanker

Dongfeng 5,000–7,000 L Stainless Water Tanker is listed for water delivery, road wetting or washing. The supplier listing describes 5,000 / 6,000 / 7,000 L options. The listed working arrangement is water carrying and road-spray equipment; final equipment and legal payload require a signed specification.

Capacity: 5,000 / 6,000 / 7,000 L options (supplier listing)
Drive: 4×2
Fuel: Diesel
Transmission: 5 forward gears, 1 reverse, manual

Operational planning

Core capabilities

5,000 / 6,000 / 7,000 L options (supplier listing)

Tank volume describes stored water, not guaranteed kilometres or square metres covered. A route estimate requires verified nozzle flow, spray width, operating speed, overlap and refill time; these inputs are not established for this listing.

Conditions: Use the signed vehicle specification and measured site or route inputs; no coverage or output guarantee is stated.

Actual results vary with: Actual duty cycle, loading, route conditions, equipment settings and refill or disposal time.

Vehicle specifications

Manufacturer: Chengli Special Automobile Co., Ltd. / CLW

Vehicle model: CLW5070GSS3

Chassis brand: Dongfeng

Chassis model: EQ1070TJ9AD3

Drive layout: 4×2

Steering side: Left-hand drive

Powertrain: Diesel engine, manual transmission

Fuel type: Diesel

Engine model: Chaochai 120 hp or Yuchai 120 hp

Engine power: 88 kW

Transmission: 5 forward gears, 1 reverse, manual

Wheelbase: 3800 mm

Length: 6900 mm

Width: 2320 mm

Height: 2450 mm

Curb weight: 7490 kg

Rated payload: 7000 kg

Primary capacity: 5,000 / 6,000 / 7,000 L options (supplier listing)

Intended applications

water delivery, road wetting or washing

Confirm the duty cycle, legal load and destination requirements against the final signed vehicle specification.

Supplier-listed configuration details

These are reference listing values, not a confirmed build or guaranteed performance. Request the signed technical schedule for the selected chassis and equipment.

Chassis and power

Brake System: Air brake

Cab Capacity: 3 persons

Displacement: 3.856 L

Electric System: 24 V

Engine Type: Four-cylinder, in-line, water-cooled

Front Axle: 2.5 tons

Rear Axle: 4.5 tons

Steering: Power steering

Tyres: 8.25-16, 6+1

Body and tank

Hose Reels: Two hose reels, one per side

Manhole: One DN500 top manhole

Tank Capacity: 6–7 m³ source range

Tank Material: Q235 carbon steel or stainless steel, depending on ordered configuration

Working system

Delivery Head: 45 m

Functions: Front spray, Rear spill, Side spray, Self-flow filling, Self-priming, Fire coupling, Rear working platform with adjustable water cannon

Matched Power: 9.25 kW

Pump Efficiency: 95%

Pump Flow: 40 m³/h

Pump Model: CLW65QZF-40/45N (N/S)

Pump Speed: 1450 r/min

Self Priming: 1.5 min / 4 m

Supplier Listed System: water carrying and road-spray equipment

Operating performance

Sprinkling Width: ≥14 m in detailed technical specifications; summary attribute states >16 m

Suction Depth: ≥7 m

Water Cannon Range: ≥28 m

Safety items listed

Air brake system
Power steering
Top manhole access; safe-work procedure required
Final anti-surge baffles, ladder, handrail and overflow arrangement to be confirmed

Suitable working conditions

Water transport or road wetting where the final tank, pump and water-use rules are confirmed

Check before selecting

Potable-water service without a food-grade tank and relevant approval
Operation above the final legal payload or axle limits

Product details

Dongfeng 5,000–7,000 L Stainless Water Tanker is listed for water delivery, road wetting or washing. The supplier listing describes 5,000 / 6,000 / 7,000 L options. The product listing describes water carrying and road-spray equipment. The source describes a Dongfeng reference chassis in 4×2 layout. The listed power source is diesel; final engine or battery details must be checked against the chosen chassis.

Confirm the final tank volume and unit, tank material, pump flow, spray equipment, water source, axle loads and destination requirements before quotation. Price, lead time, certification and after-sales terms must be confirmed in a current written quotation or contract.

Verification

Trust and document status

Authorization

Africa Municipal Trucks is operated by Chengli Automobile Group's own team. We work directly with Chengli's Suizhou manufacturing operations to confirm vehicle specifications, coordinate production and prepare export documents for each order.

Factory inspection

We can coordinate a visit to Chengli's Suizhou production facilities and, if requested, an independent pre-shipment inspection. The inspection scope, access and timing are agreed for the confirmed order.

Important operating note

Confirm the final tank volume and unit, tank material, pump flow, spray equipment, water source, axle loads and destination requirements before quotation.

Custom quotation

Information needed for an accurate offer

Send the actual working conditions so the chassis, tank, pump, steering and compliance package can be checked before quotation.

Provide the destination port in Nigeria, Ghana, Kenya or Tanzania and the final inland delivery point. Freight must be recalculated from the signed configuration.

Required tank capacity
Water type and intended use
Road width and daily route length
Required spray width and cannon range
Destination country and port
Emission and steering requirements
Tank material
Quantity, colour and logo

Send RFQ details

Checks before a formal quotation

Confirm one final capacity/configuration
Confirm stainless-steel grade if selected
Confirm legal payload and axle loads
Confirm pump curve and nozzle layout
Confirm destination compliance documents
Confirm Incoterm, freight and warranty
